SKU: ZKLF.1255.2RS.PE

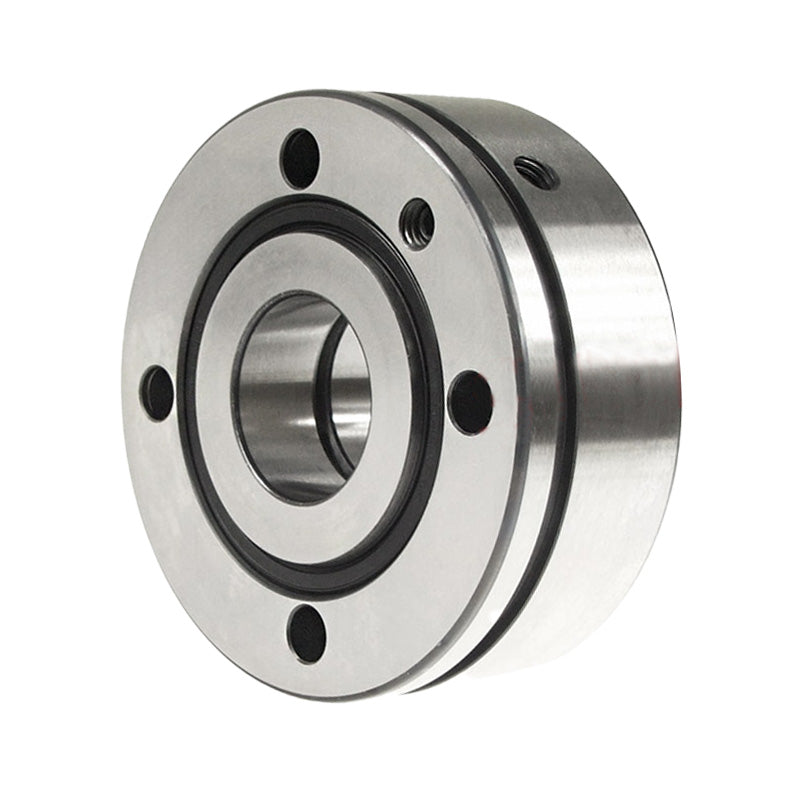

INA ZKLF12552RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 12x55x25mm Allow 2-3 Days
INA ZKLF12552RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 12x55x25mm Allow 2-3 Days
Regular price
$545.90
ex VAT
Regular price
Sale price
$545.90
ex VAT
In stock
Price Break
4+
$259.19
9+
$244.63
19+
$241.72
29+
$238.81
39+
$235.90
49+
$232.98
59+
$218.42
69+
$215.51
79+
$212.60
89+
$209.69
99+
$203.86
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 55mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 12mm (Tolerance -0.01) |
|---|---|
| D | 55mm (Tolerance -0.013) |
| B | 25mm (Tolerance -0.25) |
| 1) Extraction Slot | Yes |
| b | 3mm |
| Da max | 33mm |
| d1 | 25mm |
| d2 | 6.8mm |
| da min | 16mm |
| I | 17mm |
| J | 42mm |
| r1 min | 0.6mm |
| r min | 0.3mm |
| t | 3 X 120° |
| m | 0.37 kg |
| Basic dynamic load rating, axial | 16900 N |
| Basic static load rating, axial | 24700 N |
| nG Fett | 3800 rpm |
| MRL | 0.16 Nm |
| caL | 375 Nm |
| ckL | 50 Nm/mrad |
| Mm | 0.068 kg x cm^2 |
| Axial runout | 5 micrometres |
| Qty fix screws | 3 x M6 |
| Locknut | ZM12 |
| MA | 8 Nm |
| Axial Preload | 5038 N |
