SKU: YAR211-203-2FW/VA228-SKF

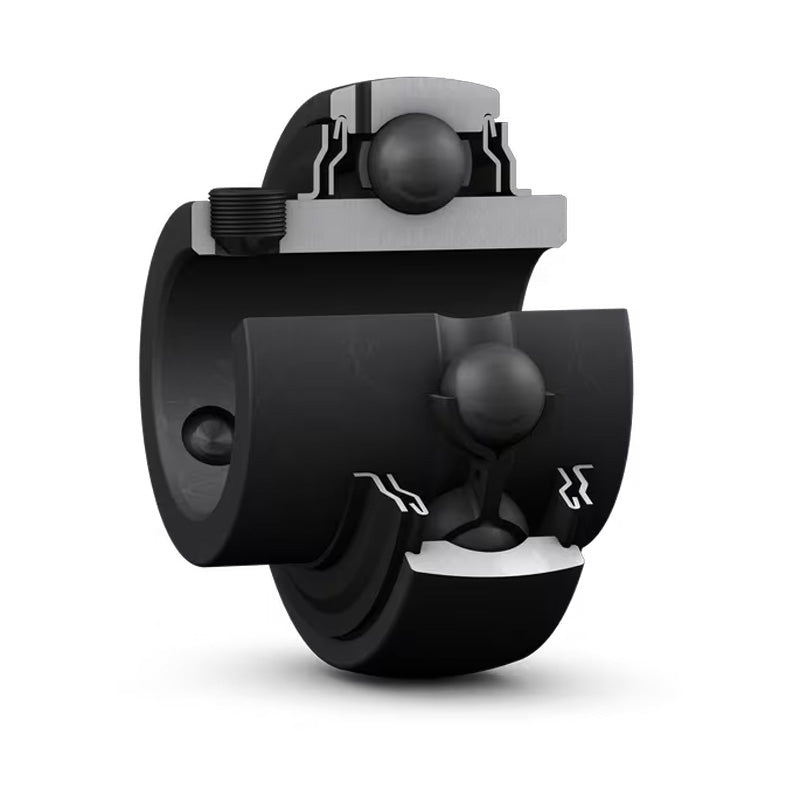

SKF YAR2112032FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 2-3/16 inch shaft
SKF YAR2112032FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 2-3/16 inch shaft
Out of stock
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| D | 100mm |
| B | 55.6mm |
| C | 25mm |
| d1 | 69.1mm |
| s1 | 33.4mm |
| r1r2 min | 1mm |
| Dynamic load C | 25 kN |
| Static load Co | 29 kN |
| Weight | 1.05 kg |
