SKU: YAR210-115-2FW/VA201-SKF

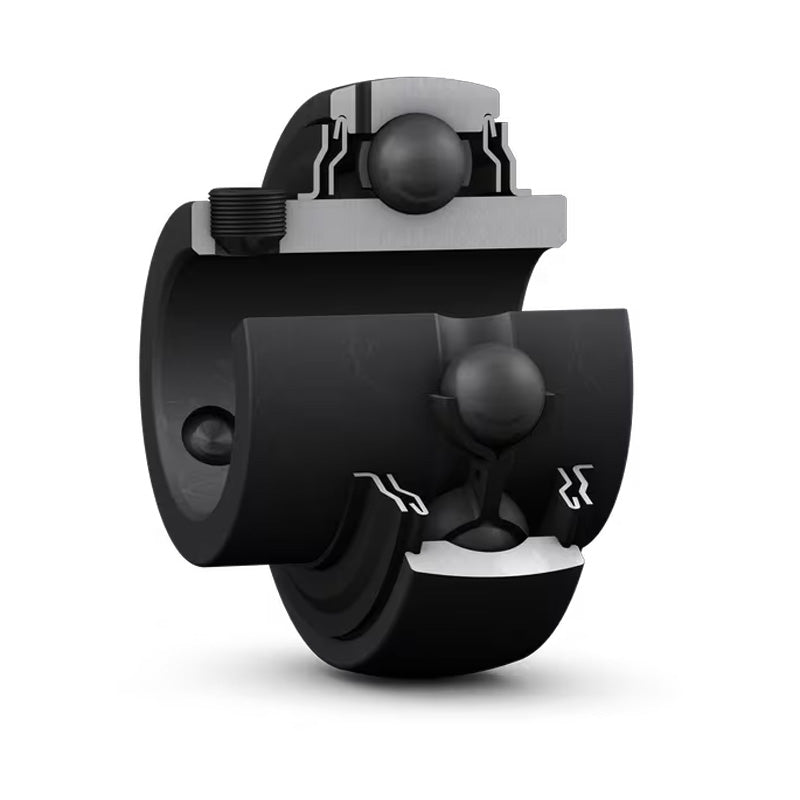

SKF YAR2101152FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1-15/16 inch shaft
SKF YAR2101152FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1-15/16 inch shaft
Out of stock
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| D | 90mm |
| B | 51.6mm |
| C | 22mm |
| d1 | 62.5mm |
| s1 | 32.6mm |
| r1r2 min | 1mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 23.2 kN |
| Weight | 0.78 kg |
