SKU: WS016-JUB

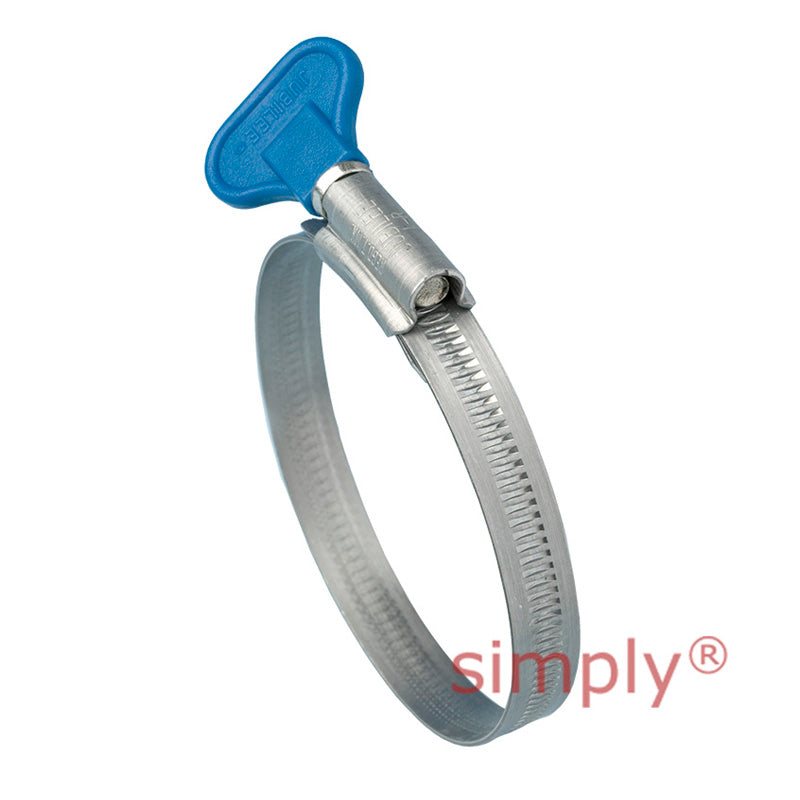

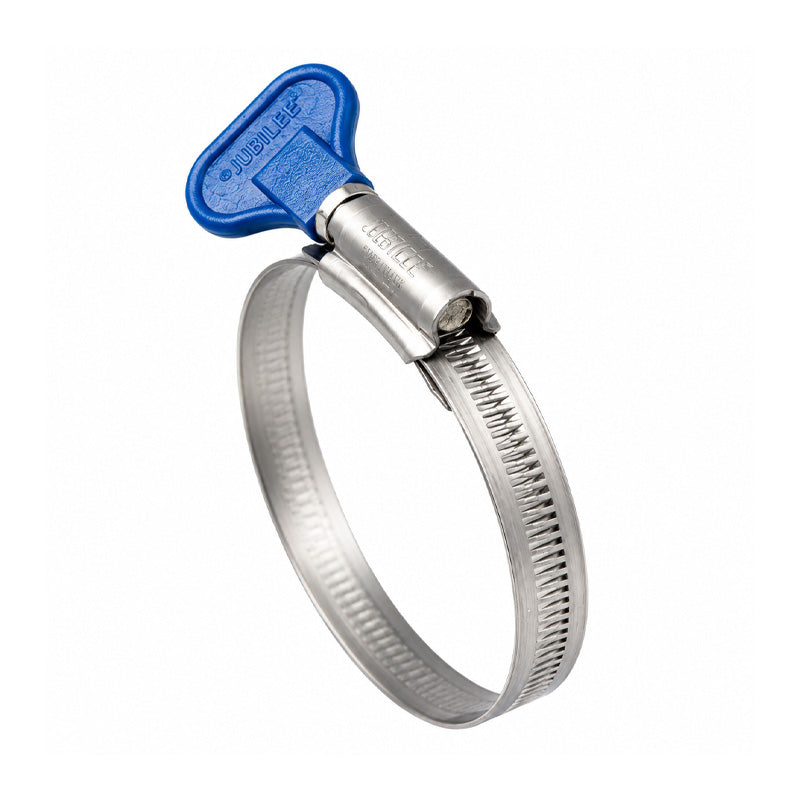

WS016 Zinc Plated Steel Jubilee Wingspade Clip Adjustment Range 11mm-16mm Band Width 9.9mm
WS016 Zinc Plated Steel Jubilee Wingspade Clip Adjustment Range 11mm-16mm Band Width 9.9mm
Regular price
$6.27
ex VAT
Regular price
Sale price
$6.27
ex VAT
Low stock
Price Break
3+
$2.34
5+
$2.00
9+
$1.84
19+
$1.67
49+
$1.34
74+
$1.17
99+
$1.00
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Jubilee Wingspade Clips: Jubilee Wingspade® Clips have a thumb screw for fitting easily by hand. Suitable where repeated tightening/loosening/removing of the clip are required such as garden hoses and other domestic applications.
Benefits: Easy to fit by hand using thumb and forefinger.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 9.9mm
- Min Adjustment Range:
- 11mm
- Max Adjustment Range:
- 16mm

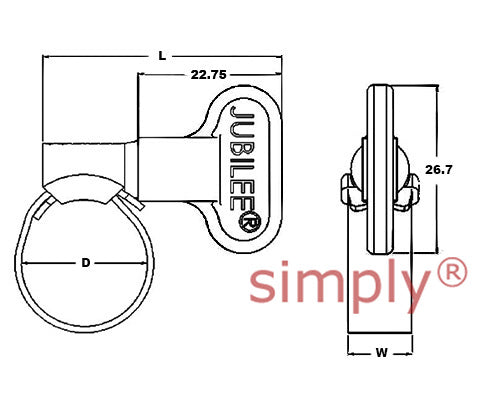

Technical
Technical
| Adjustment Range | 11mm - 16mm |
|---|---|
| Band Width (+/- 0.1) | 9.9mm |
| Band Thickness (+/- 0.1) | 0.762mm |
| Recommended Torque | 3.4Nm |
| Maximum Torque | 4.5Nm |
| Maximum Pressure | 182 Psi |
