SKU: W61903-A-ZZ-EU

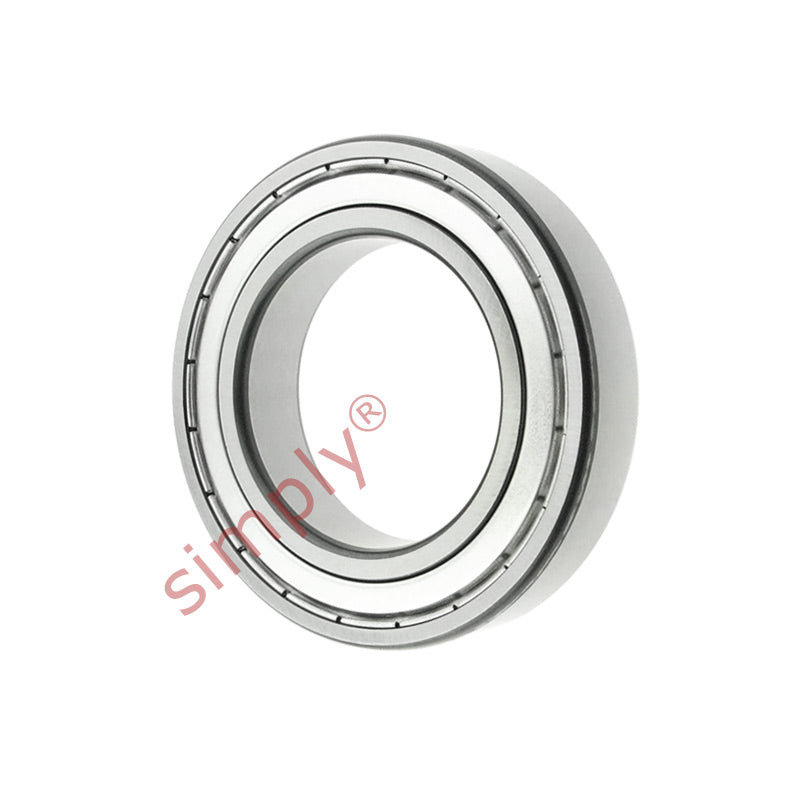

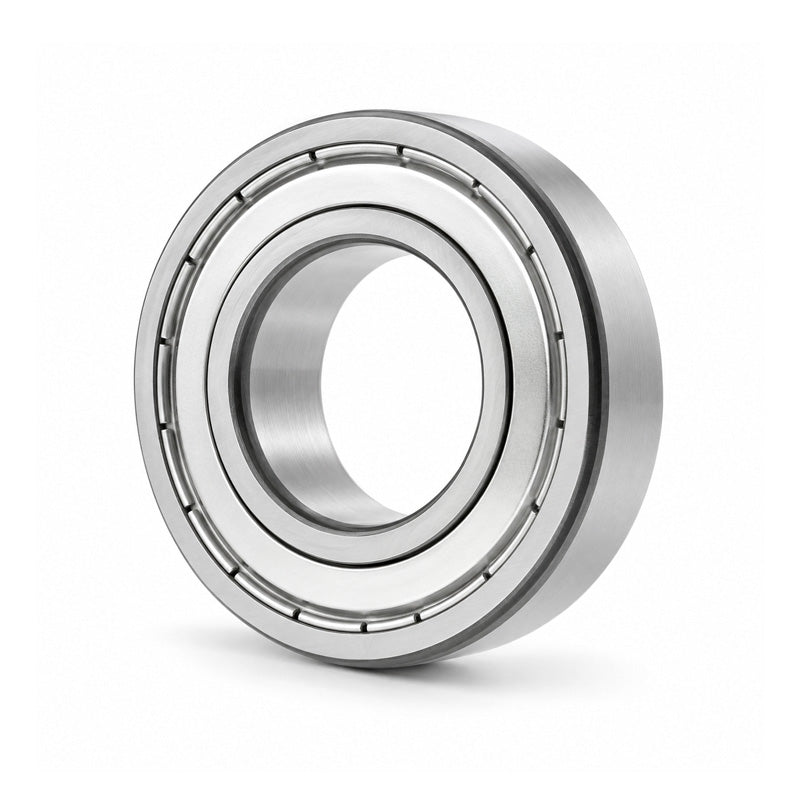

W61903AZZ Budget Metal Shielded Thin Section Stainless Steel Deep Groove Ball Bearing 17x32x8mm
Equivalent to: W6903AZZ W6903A2Z W61903A2Z
Out of stock
Share this product
Description
Stainless Steel Metal Shielded Thin Section Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 32mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| Inside diameter d | 17mm |
|---|---|
| Outside diameter D | 32mm |
| Width | 8mm |
| Radius min | 0.3mm |
| Dynamic load | 455 kgf |
| Static load | 250 kgf |
