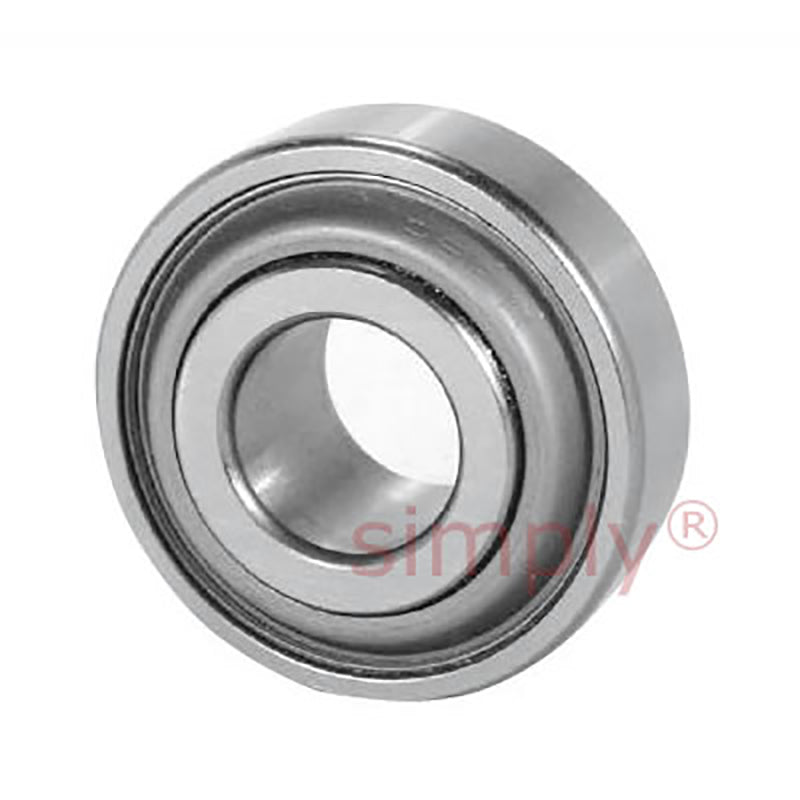

Major Brand W52042RSTFPC3TN Disc Opener Round Bore Bearing 0.7874x1.8504x0.938 inch

Disc Opener
Application conditions:

• Single disc or double disc arrangements are used to open the furrow
• Bearings are pressed into the housing which is riveted or screwed to the disc. The disc assembly is bolted to the machine frame
• High loads are encountered in no-till farming and due to angle of pull
• Rigid assembly is required for a precise disc mounting which creates a consistent furrow
• Dusty and sometimes moist environment

• HUB assembly is available for ease of mounting
• Reduced labour cost and eliminate damage due to incorrect assembly

• Optimized internal geometry
• High load capacity
• High contamination feature package with exclusive sealing system

• Rigid disc
• Minimized operating internal clearance

Seal Type: F
Typical Application & Speed Limit: Mower Spindles/Idler Pulleys - Basic BRG. Size < 205: 3500 RPM , Combine Power Transmission (PT) - Basic BRG. Size > 205: 2000 RPM
Typical Environment: Indirect contamination, airborne dust, light/moderate water exposure
Contamination Exclusion: Moderate

Brand / Quality:

PEER - High Quality

Inside Diameter:

20mm = 0.787 inch

Outside Diameter:

47mm = 1.85 inch

Width:

23.81mm = 0.938 inch
