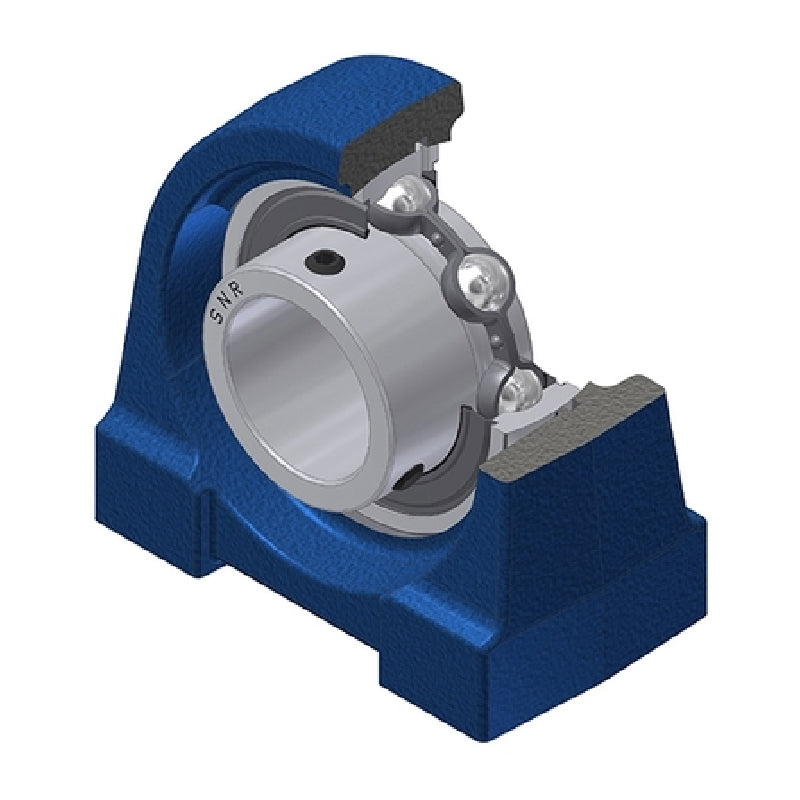

SNR USPG207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 35mm Bore Insert
SNR USPG207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 35mm Bore Insert
Regular price
$61.11
ex VAT
Regular price
Sale price
$61.11
ex VAT
In stock
Price Break
3+
$28.98
4+
$27.35
9+
$27.02
19+
$26.70
49+
$26.37
99+
$26.05
499+
$24.42
999+
$24.09
1999+
$23.77
2999+
$23.44
4999+
$22.79
Quantity
Couldn't load pickup availability
Description
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- USPG
- Bolt Hole Centres:
- 68mm
Technical
Technical

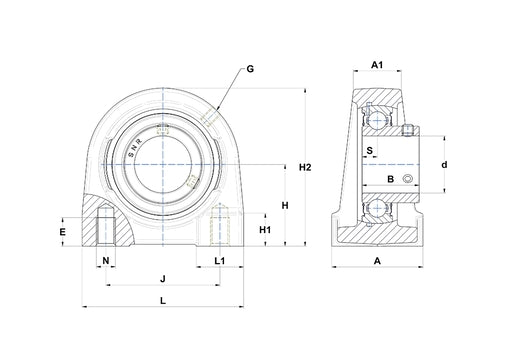

| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 48mm |
| A1 | 27mm |
| B | 32mm |
| E | 22mm |
| H | 47.6mm |
| H1 | 20mm |
| H2 | 93mm |
| J | 68mm |
| L | 100mm |
| L1 | 35mm |
| N | M12 |
| S | 8.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.52 kg |
