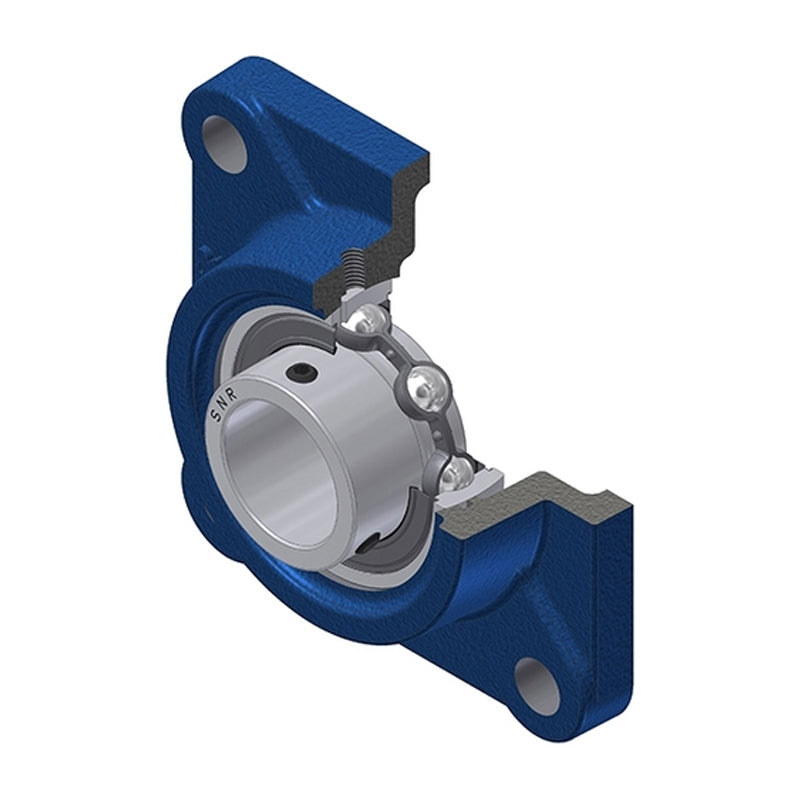

SNR USF212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert
SNR USF212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert
Regular price
$112.78
ex VAT
Regular price
Sale price
$112.78
ex VAT
In stock
Price Break
3+
$53.48
4+
$50.47
9+
$49.87
19+
$49.27
49+
$48.67
99+
$48.07
499+
$45.07
999+
$44.47
1999+
$43.86
2999+
$43.26
4999+
$42.06
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- USF
- Bolt Hole Centres:
- 143mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 48mm |
| A1 | 18mm |
| A2 | 67.8mm |
| B | 53.7mm |
| e | 29mm |
| J | 143mm |
| L | 175mm |
| N | 19mm |
| S | 14.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.13 kg |
