SKU: UKT317D1/HA2317X-NTN

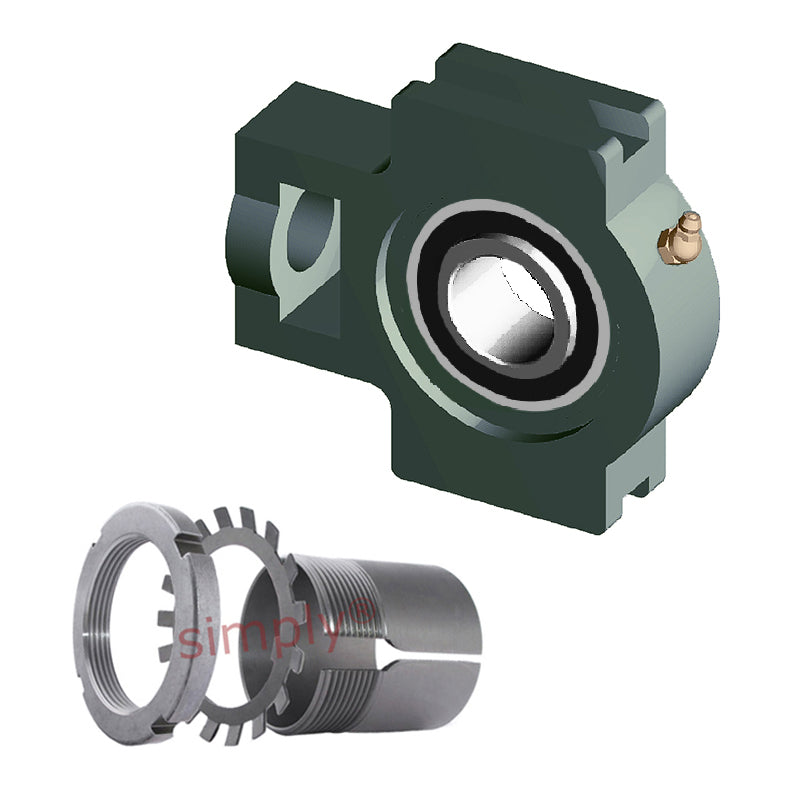

NTN UKT317D1/HA2317X Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 2-15/16 inch Shaft - Allow 2-3 Days
NTN UKT317D1/HA2317X Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 2-15/16 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 2-15/16 inch |
|---|---|
| N<sub>1</sub> | 1-21/32 inch |
| L<sub>2</sub> | 1-1/4 inch |
| H<sub>2</sub> | 5-31/32 inch |
| N<sub>2</sub> | 3-27/32 inch |
| N | 2-3/32 inch |
| L<sub>3</sub> | 6-11/16 inch |
| A<sub>1</sub> | 1.26 inch |
| H<sub>1</sub> | 8-27/64 inch |
| H | 9-7/16 inch |
| L | 11-23/32 inch |
| A<sub>2</sub> | 2-17/32 inch |
| A | 4-1/32 inch |
| r | 4-17/32 inch |
| L<sub>1</sub> | 7-7/32 inch |
| B<sub>1</sub> | 3.228 inch |
| Mass | 42 lbs |
