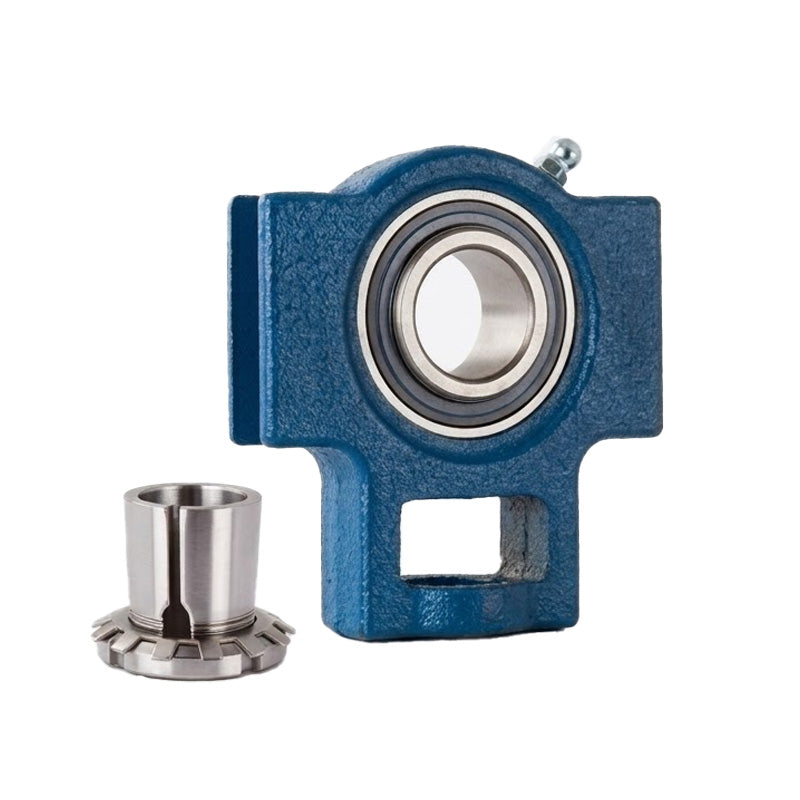

UKT313/HA2313 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-3/16 inch Shaft
UKT313/HA2313 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-3/16 inch Shaft
Out of stock
Share this product
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UKT
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| o | 32mm |
| g | 25mm |
| p | 116mm |
| q | 70mm |
| s | 43mm |
| b | 134mm |
| k | 26mm |
| e | 170mm |
| a | 190mm |
| w | 238mm |
| j | 80mm |
| l | 50mm |
| h | 146mm |
| Bi | 65mm |
| S1 | 33mm |
| Bearing No. | UK313 |
| Adapter No. | HA2313 |
| Housing No. | T313 |
| Weight | 9.4 kg |
