SKU: UKT311D1/HE2311XY-NTN

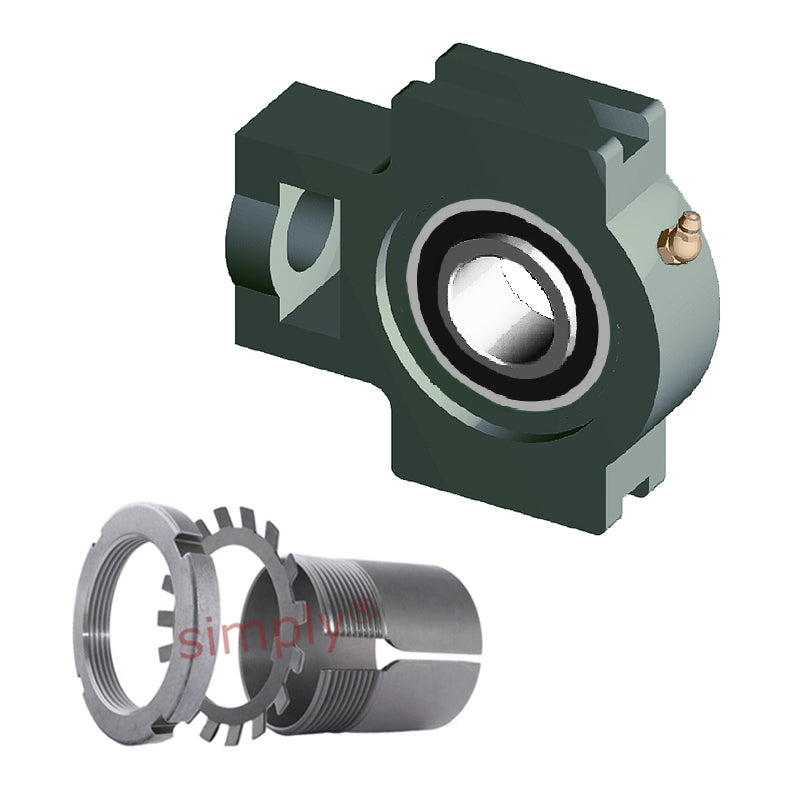

NTN UKT311D1/HE2311XY Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 2 inch Shaft - Allow 2-3 Days
NTN UKT311D1/HE2311XY Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 2 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 2 inch |
|---|---|
| N<sub>1</sub> | 1-5/32 inch |
| L<sub>2</sub> | 29/32 inch |
| H<sub>2</sub> | 4-1/8 inch |
| N<sub>2</sub> | 2-19/32 inch |
| N | 1-17/32 inch |
| L<sub>3</sub> | 4-17/32 inch |
| A<sub>1</sub> | 0.866 inch |
| H<sub>1</sub> | 5-29/32 inch |
| H | 6-13/32 inch |
| L | 8-5/32 inch |
| A<sub>2</sub> | 1-23/32 inch |
| A | 2-19/32 inch |
| r | 3-5/32 inch |
| L<sub>1</sub> | 5 inch |
| B<sub>1</sub> | 2.323 inch |
| Mass | 14 lbs |
