SKU: UKT307/HA2307

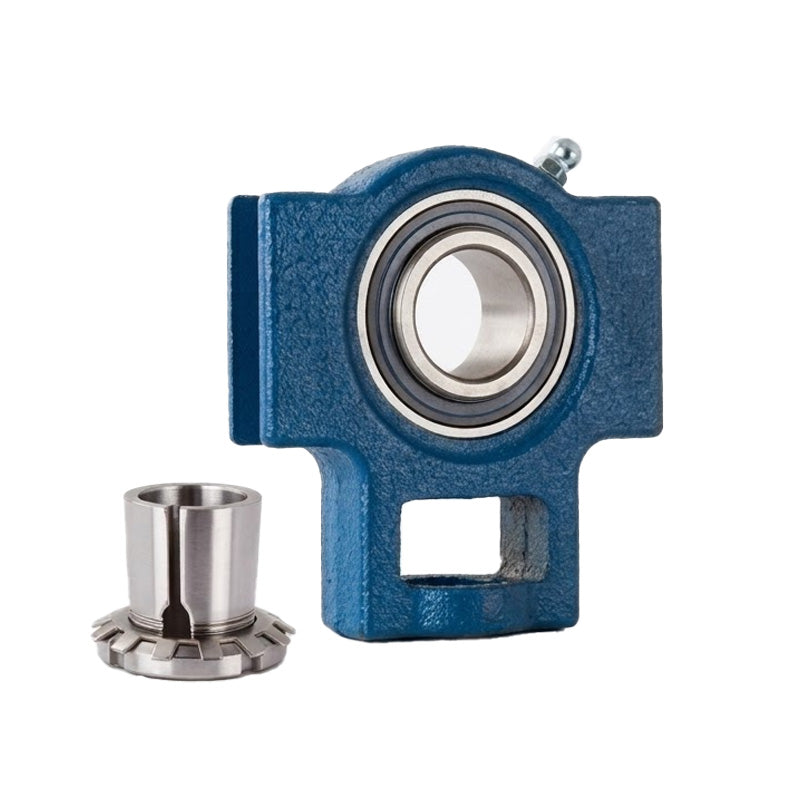

UKT307/HA2307 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 1-3/16 inch Shaft
UKT307/HA2307 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 1-3/16 inch Shaft
Out of stock
Share this product
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- UKT
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| o | 20mm |
| g | 16mm |
| p | 75mm |
| q | 45mm |
| s | 30mm |
| b | 80mm |
| k | 16mm |
| e | 100mm |
| a | 111mm |
| w | 150mm |
| j | 45mm |
| l | 32mm |
| h | 94mm |
| Bi | 43mm |
| S1 | 22.5mm |
| Bearing No. | UK307 |
| Adapter No. | HA2307 |
| Housing No. | T307 |
| Weight | 2.4 kg |
