SKU: UKT217D1/HA2317X-NTN

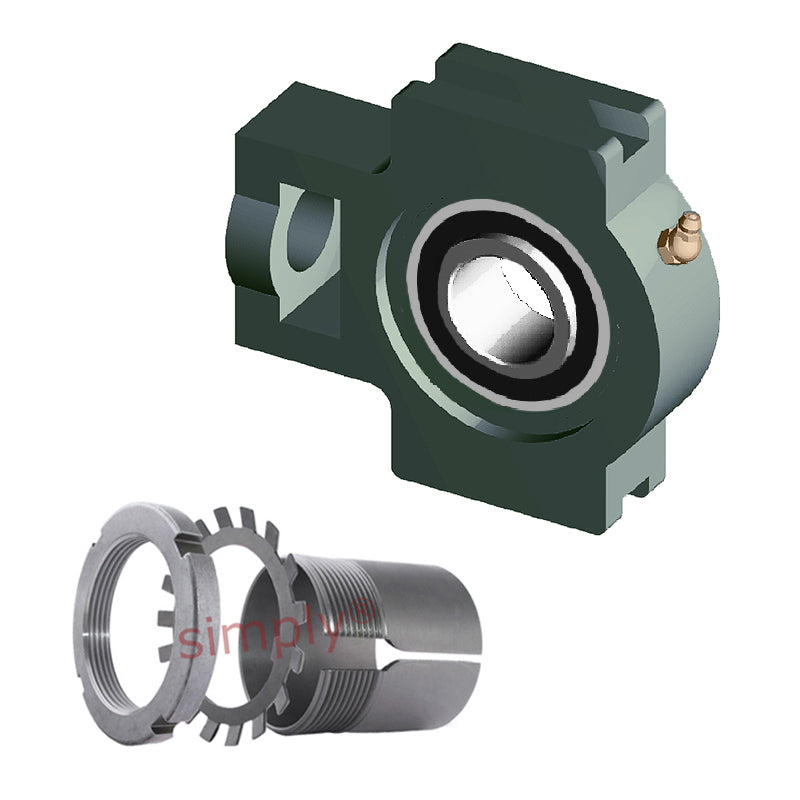

NTN UKT217D1/HA2317X Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 2-15/16 inch Shaft - Allow 2-3 Days
NTN UKT217D1/HA2317X Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 2-15/16 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 2-15/16 inch |
|---|---|
| N<sub>1</sub> | 1-1/2 inch |
| L<sub>2</sub> | 1-7/32 inch |
| H<sub>2</sub> | 4-7/8 inch |
| N<sub>2</sub> | 2-7/8 inch |
| N | 1-7/8 inch |
| L<sub>3</sub> | 6-3/16 inch |
| A<sub>1</sub> | 1.181 inch |
| H<sub>1</sub> | 6-13/16 inch |
| H | 7-25/32 inch |
| L | 10-1/4 inch |
| A<sub>2</sub> | 2-1/8 inch |
| A | 2-7/8 inch |
| r | 3-27/32 inch |
| L<sub>1</sub> | 6-3/8 inch |
| B<sub>1</sub> | 3.228 inch |
| Mass | 24 lbs |
