SKU: UKT213HCO-SNR

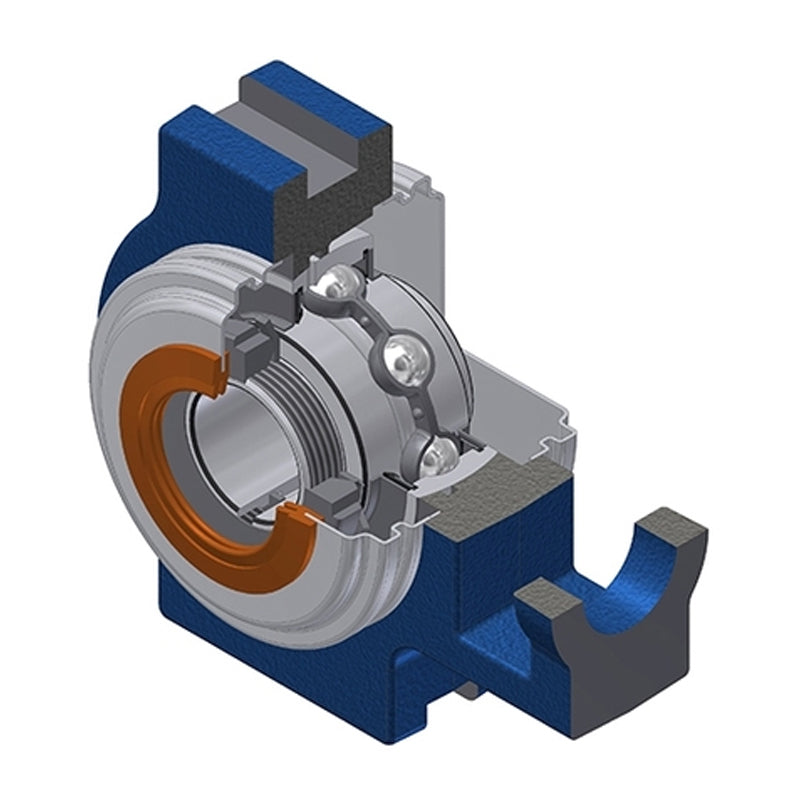

SNR UKT213HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 60mm Shaft - Open Version - Allow 2-3 Days

SNR UKT213HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 60mm Shaft - Open Version - Allow 2-3 Days
Regular price $244.23 ex VAT
Regular price Sale price $244.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $115.82
4+ $109.31
9+ $108.01
19+ $106.71
49+ $105.41
99+ $104.11
499+ $97.60
999+ $96.30
1999+ $95.00
2999+ $93.69
4999+ $91.09
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

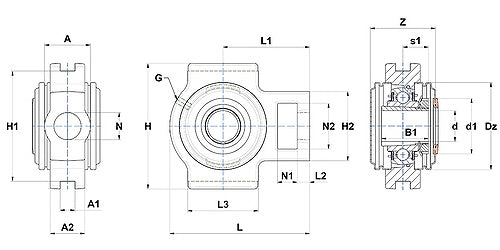

--- Dimensions
Shaft diameter d 60mm
A 70mm
A1 26mm
A2 44mm
B1 65mm
d1 85mm
H 167mm
H1 151mm
H2 111mm
L 224mm
L1 137mm
L2 21mm
L3 121mm
N 41mm
N1 32mm
N2 70mm
Dz 132mm
Z 90.6mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2313
Mass 7.035 kg
