SKU: UKT205D1/HE2305-NTN

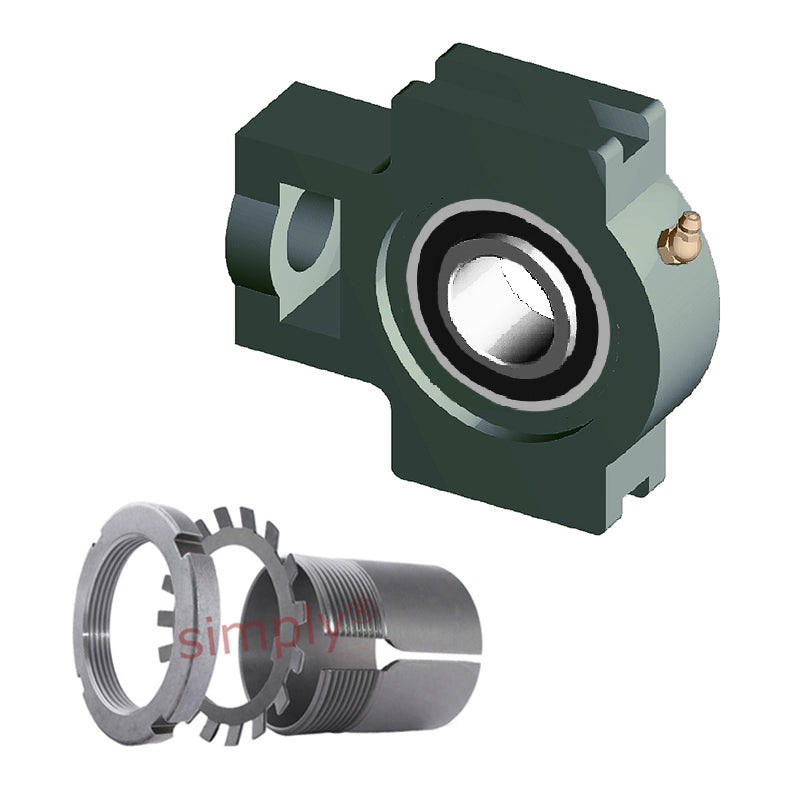

NTN UKT205D1/HE2305 Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 3/4 inch Shaft - Allow 2-3 Days
NTN UKT205D1/HE2305 Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 3/4 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- UKT

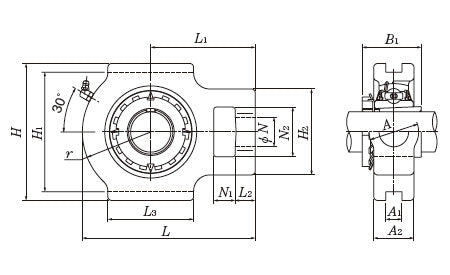

Technical
Technical
| Shaft diameter | 3/4 inch |
|---|---|
| N<sub>1</sub> | 5/8 inch |
| L<sub>2</sub> | 15/32 inch |
| H<sub>2</sub> | 2 inch |
| N<sub>2</sub> | 1-1/4 inch |
| N | 3/4 inch |
| L<sub>3</sub> | 2 inch |
| A<sub>1</sub> | 0.472 inch |
| H<sub>1</sub> | 2-63/64 inch |
| H | 3-1/2 inch |
| L | 3-13/16 inch |
| A<sub>2</sub> | 15/16 inch |
| A | 1-1/4 inch |
| r | 1-3/8 inch |
| L<sub>1</sub> | 2-7/16 inch |
| B<sub>1</sub> | 1.378 inch |
| Mass | 2 lbs |
