SKU: UKC310D1/HE2310X-NTN
NTN UKC310D1/HE2310X Imperial Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 1-3/4 inch Bore Insert 5.5118 inch Outside Dia - Allow 2-3 Days
NTN UKC310D1/HE2310X Imperial Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 1-3/4 inch Bore Insert 5.5118 inch Outside Dia - Allow 2-3 Days
Out of stock
Share this product
Description
Description

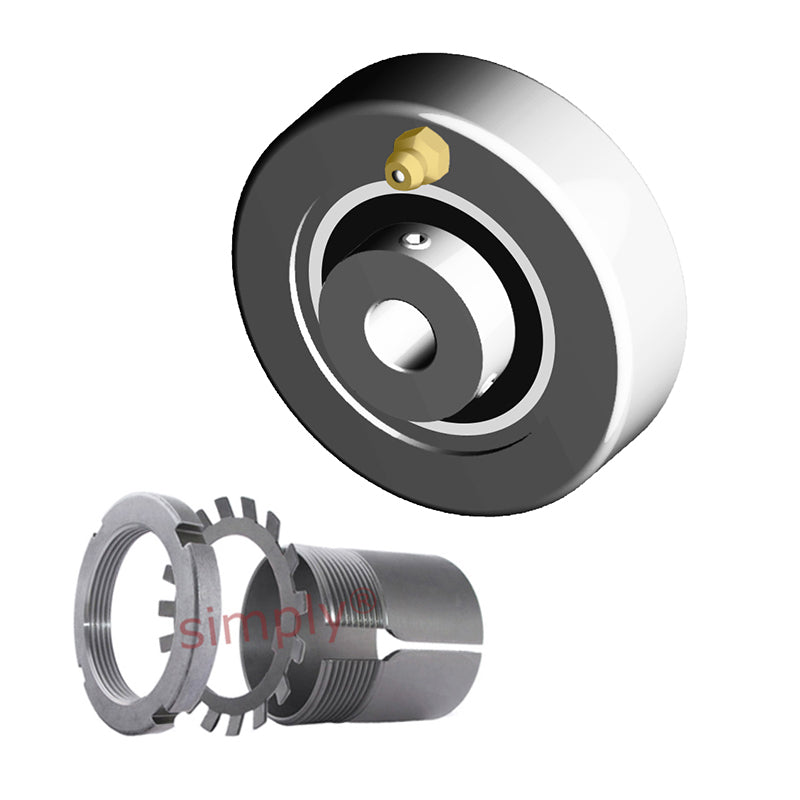

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UKC

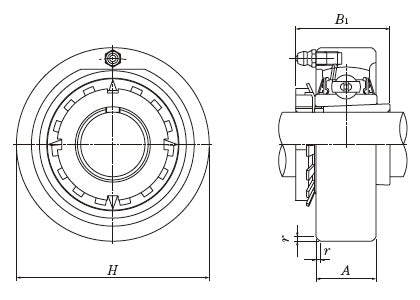

Technical
Technical
| Shaft diameter | 1-3/4 inch |
|---|---|
| H | 5.5118 inch |
| A | 1-37/64 inch |
| r | 0.138 inch |
| B<sub>1</sub> | 2.165 inch |
| Mass | 7.5 lbs |
