SKU: UKC306D1/H2306X-NTN

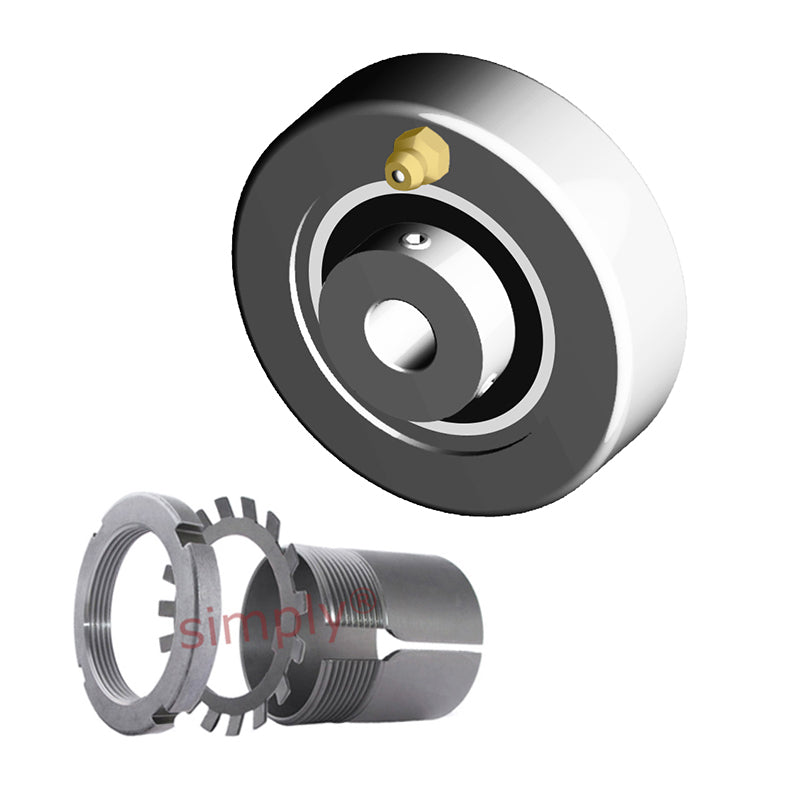

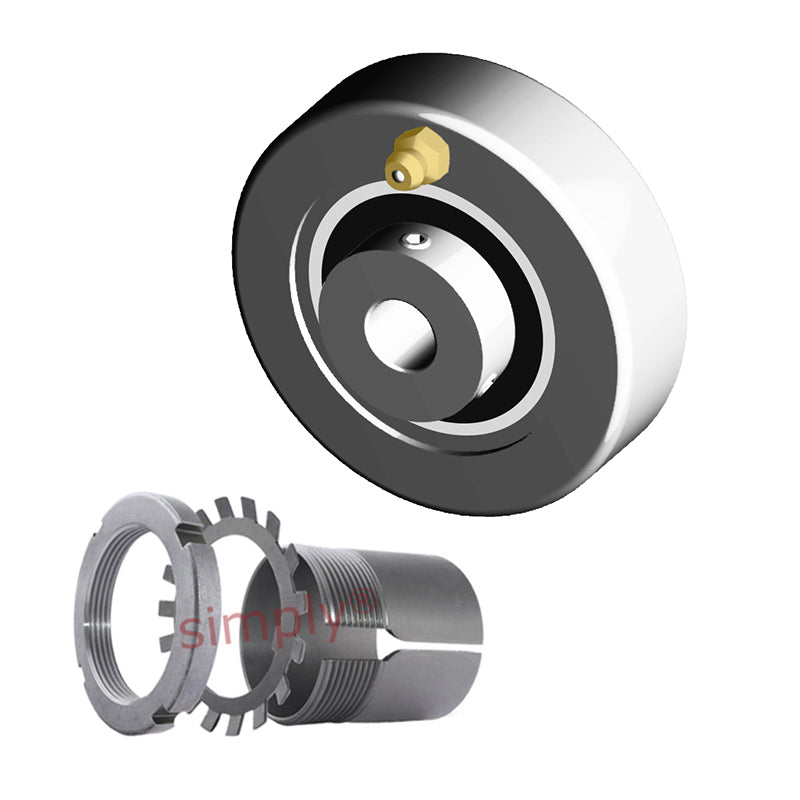

NTN UKC306D1/H2306X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 25mm Bore Insert 100mm Outside Dia - Allow 2-3 Days
NTN UKC306D1/H2306X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 25mm Bore Insert 100mm Outside Dia - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UKC
Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| H | 100mm |
| A | 28mm |
| r | 2.5mm |
| B<sub>1</sub> | 38mm |
| Mass | 1.3 kg |
