SKU: UELP208D1W3-NTN

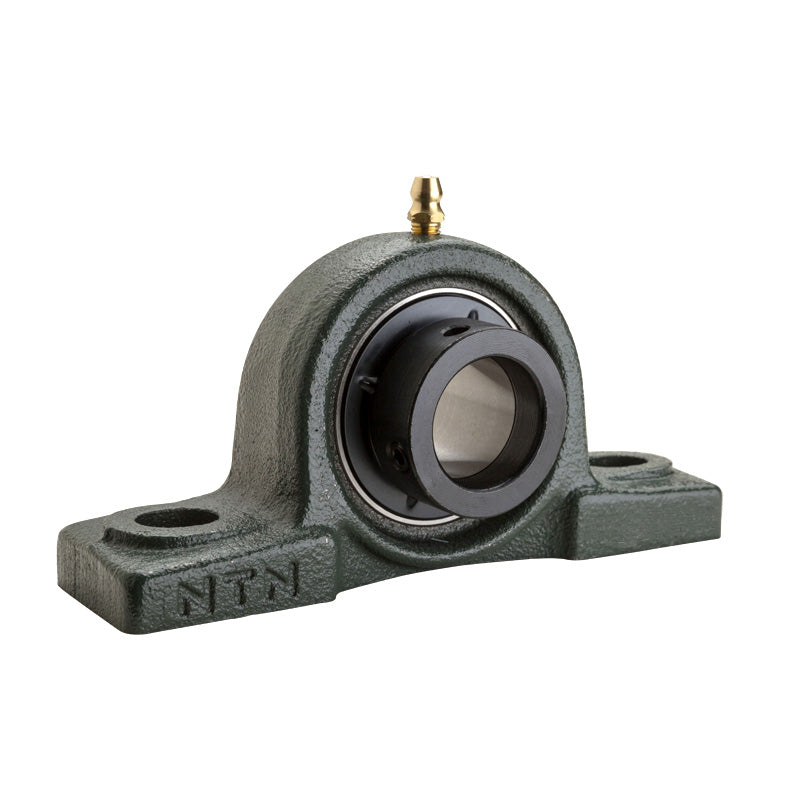

NTN UELP208D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP208D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UELP
- Bolt Hole Centres:
- 137mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H | 49.2mm |
| L | 184mm |
| J | 137mm |
| A | 54mm |
| N | 17mm |
| N<sub>1</sub> | 20mm |
| H<sub>1</sub> | 18mm |
| H<sub>2</sub> | 98mm |
| L<sub>1</sub> | 52mm |
| B<sub>1</sub> | 56.3mm |
| S | 21.4mm |
| Fixing bolt | M14 |
| Mass | 2.1 kg |
