SKU: UCX.14.TS.CHAL

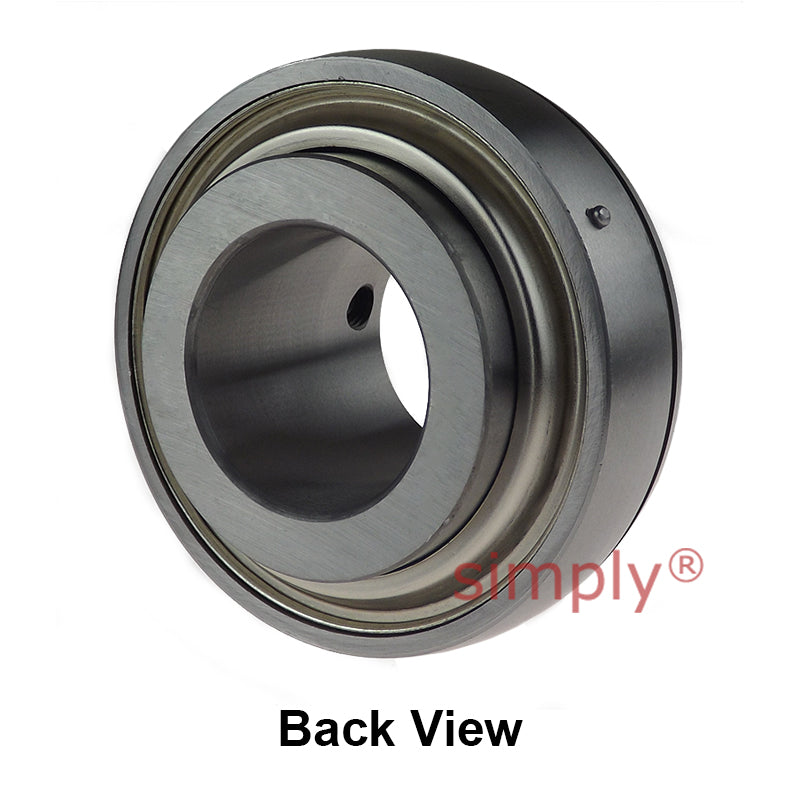

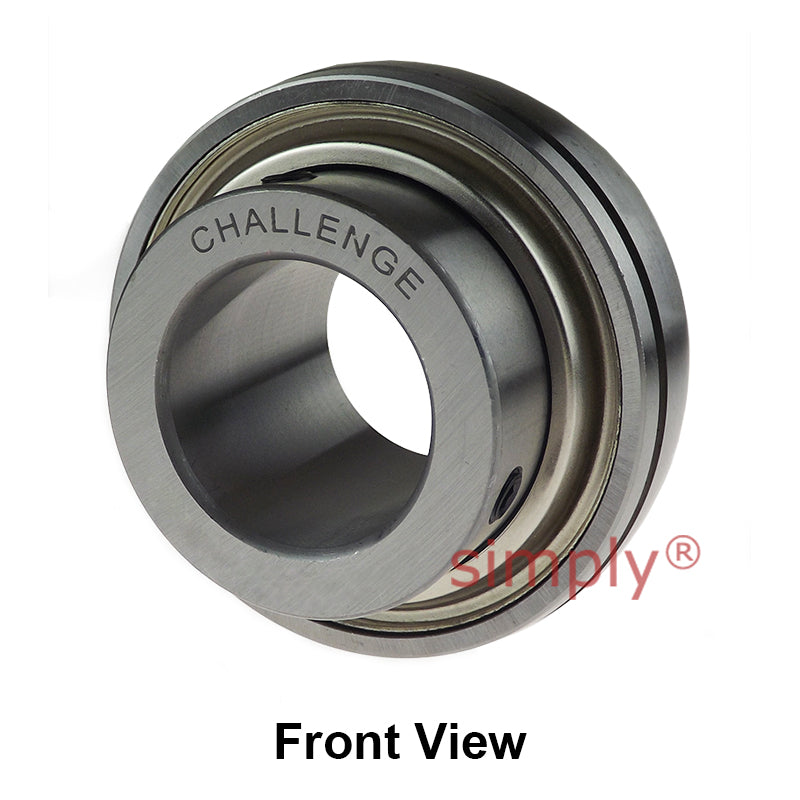

Challenge UCX14 Metric Insert with Grub Screws with 70mm Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $253.79 ex VAT
- Sale price
- $253.79
- Regular price
-
In stock
Quantity Price Breaks
3
$225.87
5
$213.18
9
$210.65
19
$208.11
49
$205.57
74
$203.03
99
$190.34
199
$187.80
249
$185.27
499
$182.73
999
$177.65
SKU:
UCX.14.TS.CHAL
Challenge UCX14 Metric Insert with Grub Screws with 70mm Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $253.79 ex VAT
- Sale price
- $253.79
- Regular price
-
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing

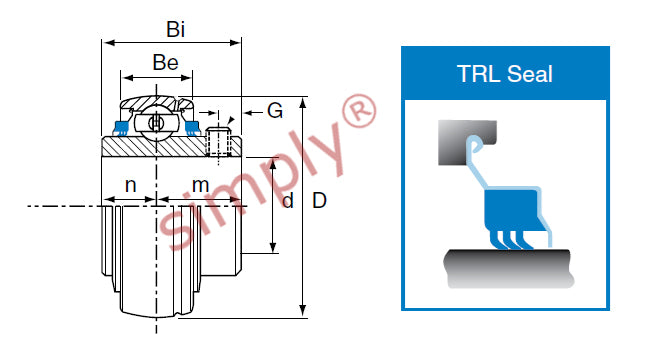

Technical
| Shaft Diameter d | = | 70mm |
| Outside Diameter D | = | 130mm |
| Overall Width Bi | = | 77.8mm |
| Inner Race Width Be | = | 32mm |
| Back of Bearing to Centre Line n | = | 33.3mm |
| Front of Bearing to Centre Line m | = | 44.5mm |
| Dimension G | = | 12mm |
| Grub Screws x 2 | = | M12X1.50mm |
| Load Rating (Dynamic) | = | 5190kg |
| Load Rating (Static) | = | 4190kg |
| Max Speed | = | 1300 rev/min |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
