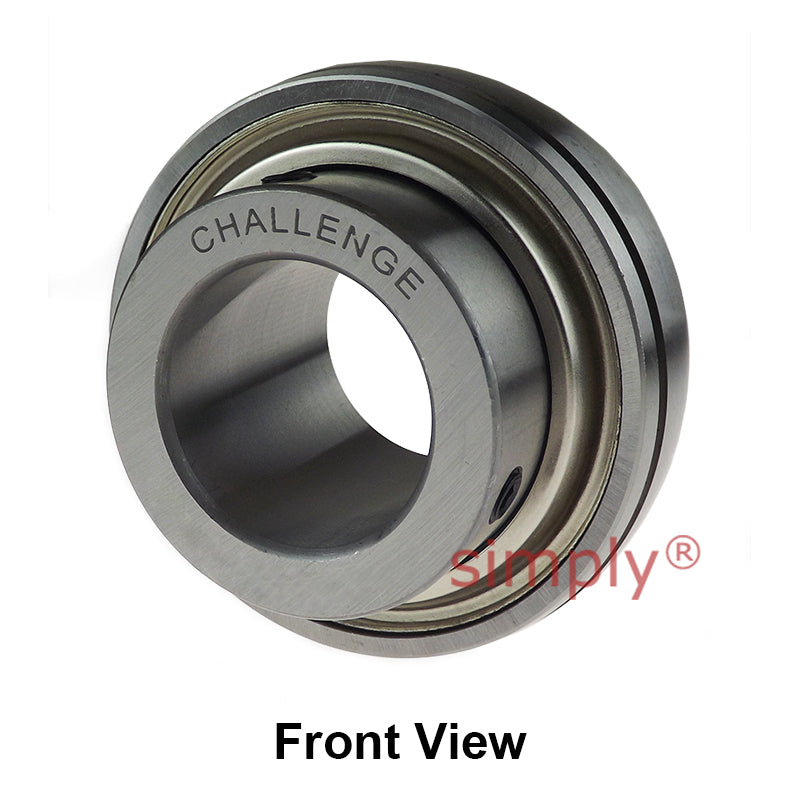

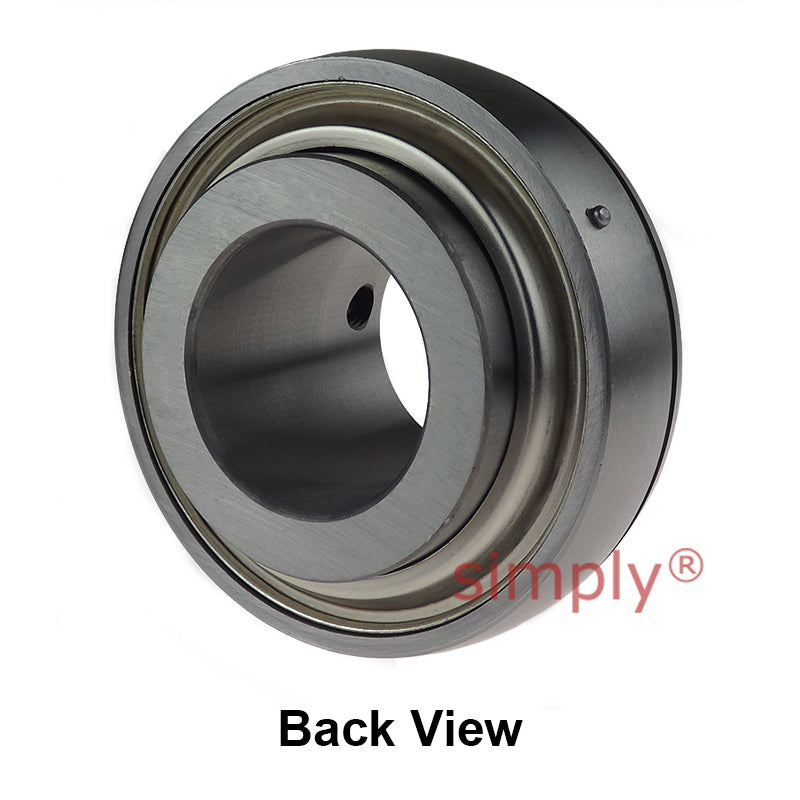

• Challenge UCX09-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UCX09-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UCX.09-28.TS.CHAL

Challenge UCX09-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UCX09-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$95.85 ex VAT
$95.85 ex VAT
Sale Sold out

Equivalent to: UCX.09-28

In stock

Price Break
3+ $45.45
5+ $42.90
9+ $42.39
19+ $41.88
49+ $41.37
74+ $40.86
99+ $38.30
199+ $37.79
249+ $37.28
499+ $36.77
999+ $35.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing

Brand / Quality:
Challenge - Good Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Style:
UCX
Technical
Shaft Diameter d 1-3/4 inch
Outside Diameter D 90mm
Overall Width Bi 51.6mm
Inner Race Width Be 24mm
Back of Bearing to Centre Line n 19mm
Front of Bearing to Centre Line m 32.6mm
Dimension G 10mm
Grub Screws x 2 5/16 - 24UNF inch
Load Rating (Dynamic) 2750kg
Load Rating (Static) 2020kg
Max Speed 1900 rev/min
Working Temperature -30°C to +120°C
