SKU: UCTX11-36

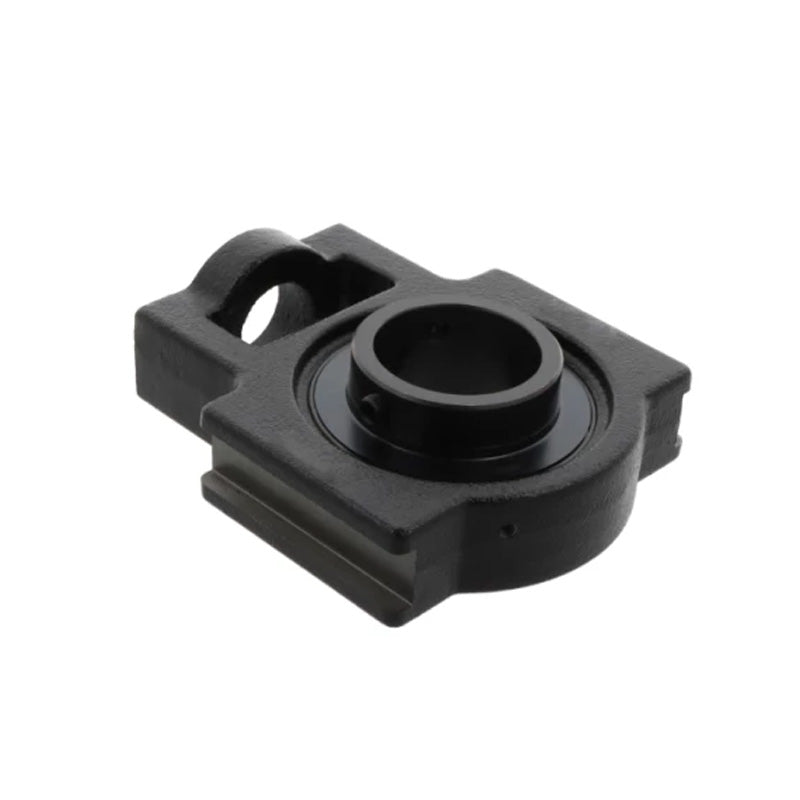

UCTX11-36 Imperial Cast Iron Take Up Unit Housing with 2-1/4 inch Bore Insert
UCTX11-36 Imperial Cast Iron Take Up Unit Housing with 2-1/4 inch Bore Insert
Regular price
$92.27
ex VAT
Regular price
Sale price
$92.27
ex VAT
In stock
Price Break
3+
$43.75
4+
$41.29
9+
$40.80
19+
$40.31
49+
$39.82
99+
$39.33
499+
$36.87
999+
$36.38
1999+
$35.89
2999+
$35.39
4999+
$34.41
Quantity
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- UCTX
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| o | 1-17/64 inch |
| g | 13/16 inch |
| p | 4-1/64 inch |
| q | 2-33/64 inch |
| s | 1-3/8 inch |
| b | 4-1/64 inch |
| k | 0.866 inch |
| e | 5-1/8 inch |
| a | 5-3/4 inch |
| w | 7-41/64 inch |
| j | 1-23/32 inch |
| l | 2-33/64 inch |
| h | 4-11/16 inch |
| B | 2.563 inch |
| n | 1 inch |
| Bearing no | UCX11-36 |
| Housing no | TX11 |
| Weight | 4.9 kg |
