SKU: UCTX05

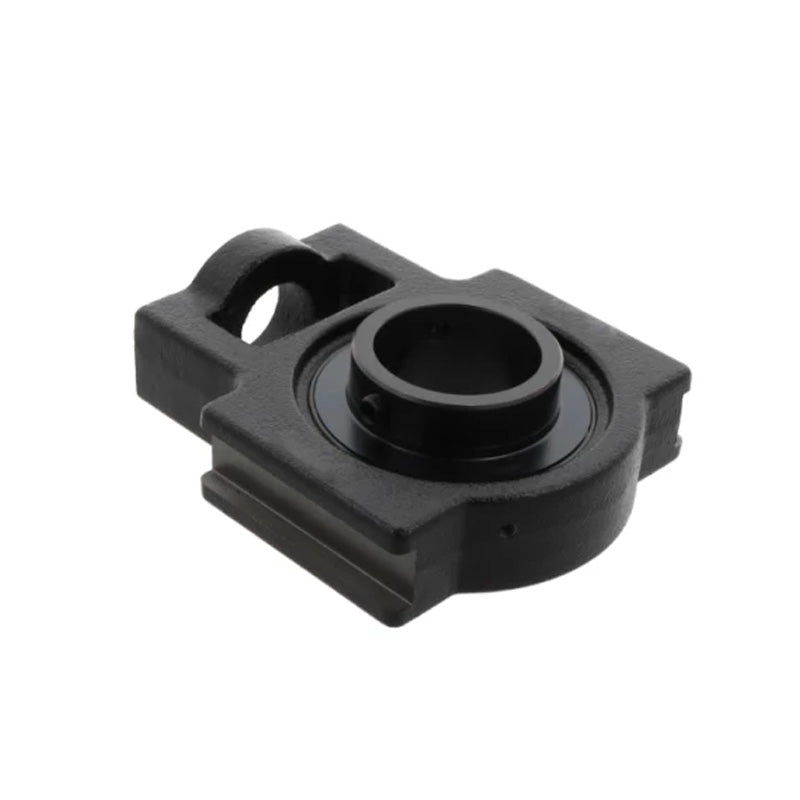

UCTX05 Metric Cast Iron Take Up Unit Housing with 25mm Bore Insert
UCTX05 Metric Cast Iron Take Up Unit Housing with 25mm Bore Insert
Regular price
$35.66
ex VAT
Regular price
Sale price
$35.66
ex VAT
In stock
Price Break
3+
$16.91
4+
$15.96
9+
$15.77
19+
$15.58
49+
$15.39
99+
$15.20
499+
$14.25
999+
$14.06
1999+
$13.87
2999+
$13.68
4999+
$13.30
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCTX

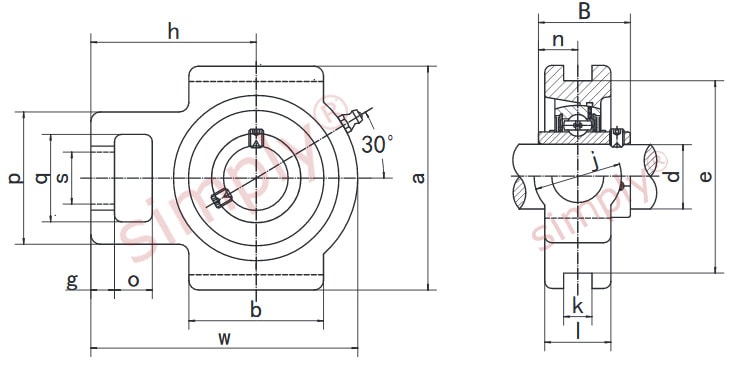

Technical
Technical
| d | 25mm |
|---|---|
| o | 16mm |
| g | 12mm |
| p | 56mm |
| q | 37mm |
| s | 22mm |
| b | 57mm |
| k | 12mm |
| e | 89mm |
| a | 102mm |
| w | 113mm |
| j | 28mm |
| l | 37mm |
| h | 70mm |
| B | 38.1mm |
| n | 15.9mm |
| Bearing no | UCX05 |
| Housing no | TX05 |
| Weight | 1.3 kg |
