SKU: UCT320-64

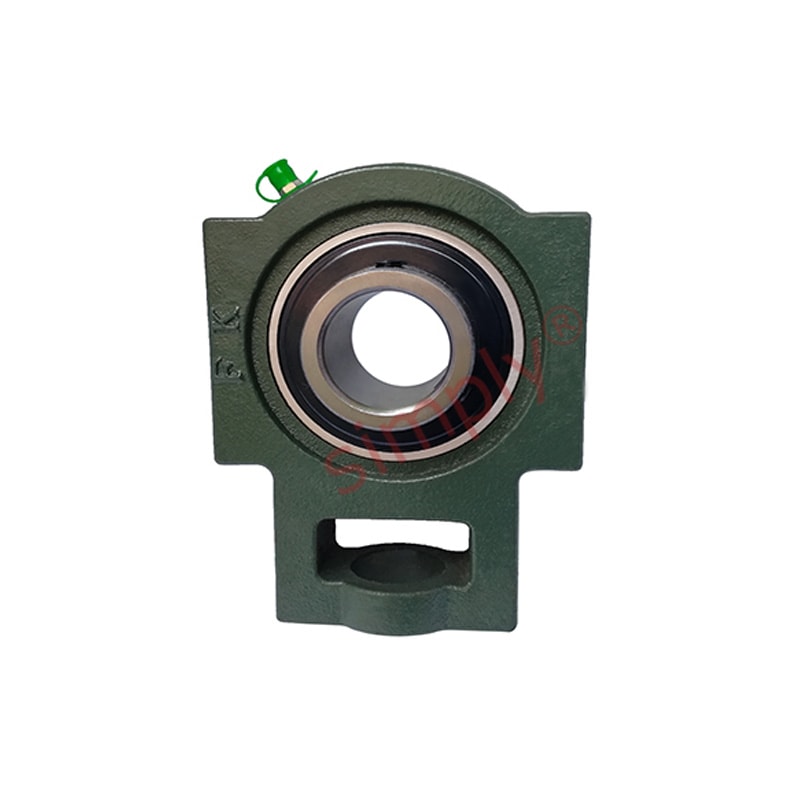

UCT320-64 Imperial Cast Iron Take Up Unit Housing with 4 inch Bore Insert
UCT320-64 Imperial Cast Iron Take Up Unit Housing with 4 inch Bore Insert
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Style:
- UCT
Technical
Technical
| d | 4 inch |
|---|---|
| o | 1-7/8 inch |
| g | 1-1/4 inch |
| p | 6-7/8 inch |
| q | 4-17/32 inch |
| s | 2-21/64 inch |
| b | 7-7/8 inch |
| k | 1.378 inch |
| e | 10-15/64 inch |
| a | 11-13/32 inch |
| w | 13-19/32 inch |
| j | 4-23/32 inch |
| l | 2-15/16 inch |
| h | 8-9/32 inch |
| B | 4.2519 inch |
| n | 1.6535 inch |
| Bearing no | UC320-64 |
| Housing no | T320 |
| Weight | 29.9 kg |
