SNR UCT315 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit - Allow 2-3 Days
SNR UCT315 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit - Allow 2-3 Days
Regular price
$358.51
ex VAT
Regular price
Sale price
$358.51
ex VAT
In stock
Price Break
3+
$170.00
4+
$160.45
9+
$158.54
19+
$156.63
49+
$154.72
99+
$152.81
499+
$143.26
999+
$141.35
1999+
$139.44
2999+
$137.53
4999+
$133.71
Quantity
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCT
Technical
Technical

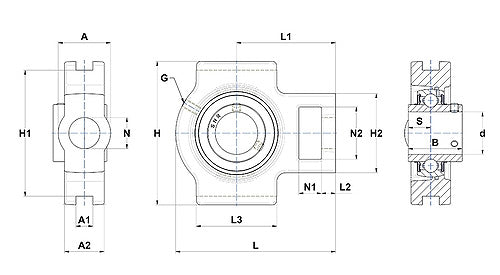

| --- | Dimensions |
|---|---|
| Shaft diameter d | 75mm |
| A | 90mm |
| A1 | 26mm |
| A2 | 55mm |
| B | 82mm |
| H | 216mm |
| H1 | 192mm |
| H2 | 132mm |
| L | 262mm |
| L1 | 160mm |
| L2 | 27mm |
| L3 | 150mm |
| N | 46mm |
| N1 | 36mm |
| N2 | 85mm |
| S | 32mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 113.36 kN |
| Static load C0 | 76.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 12.53 kg |
