SKU: UCT312D1-NTN

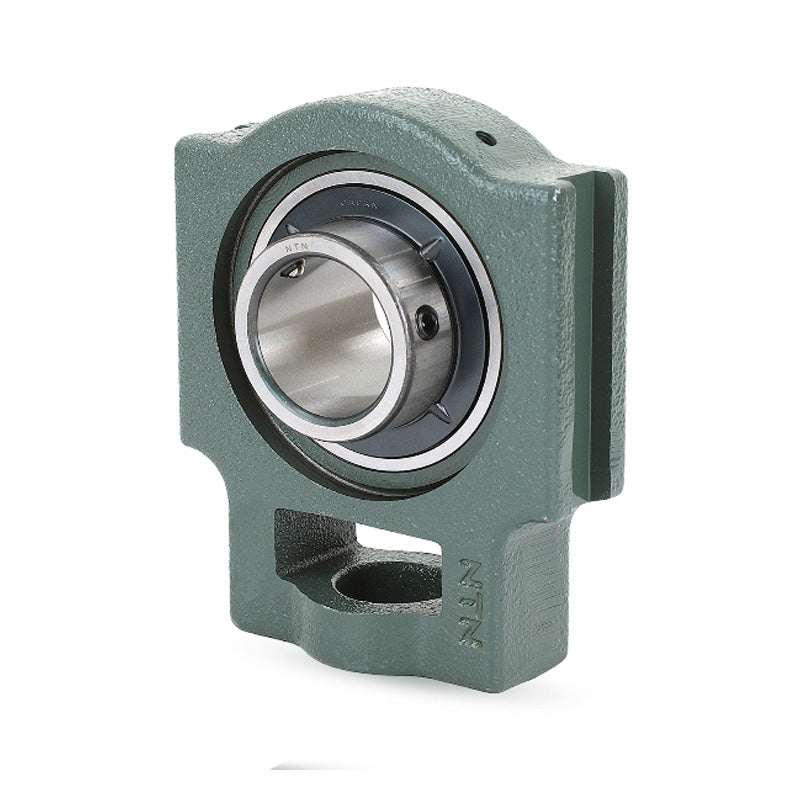

NTN UCT312D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT312D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit - Allow 2-3 Days
Regular price
$239.15
ex VAT
Regular price
Sale price
$239.15
ex VAT
In stock
Price Break
3+
$113.40
4+
$107.03
9+
$105.76
19+
$104.48
49+
$103.21
99+
$101.94
499+
$95.57
999+
$94.29
1999+
$93.02
2999+
$91.74
4999+
$89.19
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCT
Technical
Technical

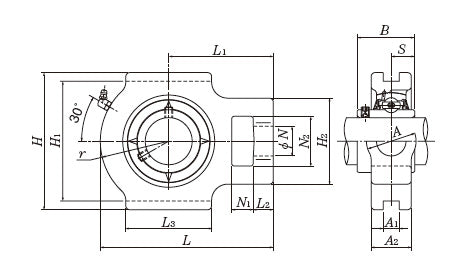

| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| N<sub>1</sub> | 31mm |
| L<sub>2</sub> | 25mm |
| H<sub>2</sub> | 113mm |
| N<sub>2</sub> | 71mm |
| N | 41mm |
| L<sub>3</sub> | 123mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 160mm |
| H | 178mm |
| L | 220mm |
| A<sub>2</sub> | 46mm |
| A | 71mm |
| r | 85mm |
| L<sub>1</sub> | 135mm |
| B | 71mm |
| S | 26mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 90.5 kN |
| Static load C<sub>0r</sub> | 52 kN |
| Fatigue load limit C<sub>u</sub> | 4.1 kN |
| --- | Unit information |
| Mass | 76 kg |
