SKU: UCT308-25

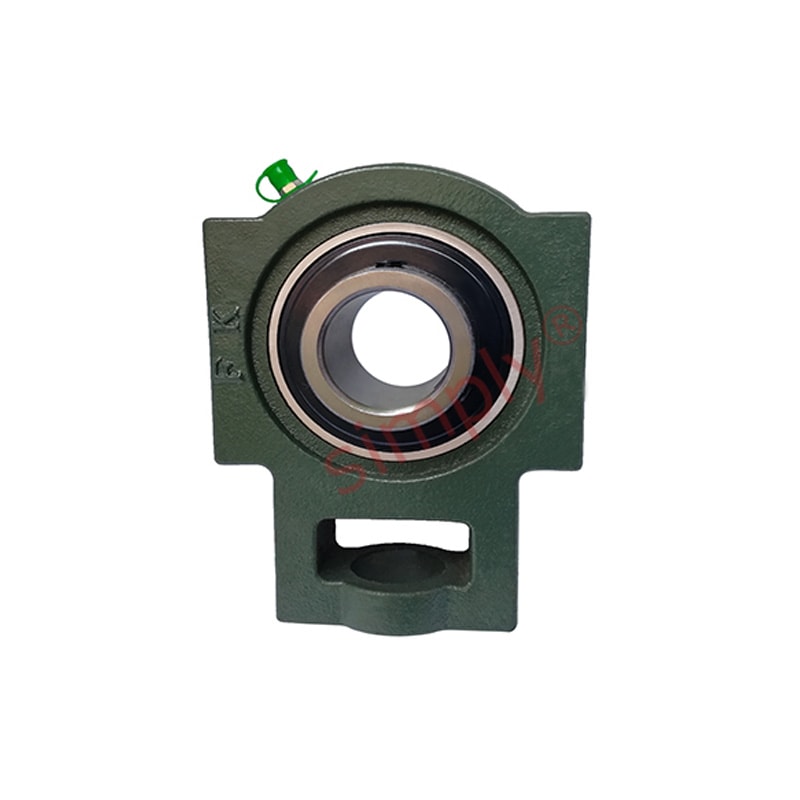

UCT308-25 Imperial Cast Iron Take Up Unit Housing with 1-9/16 inch Bore Insert
UCT308-25 Imperial Cast Iron Take Up Unit Housing with 1-9/16 inch Bore Insert
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- UCT

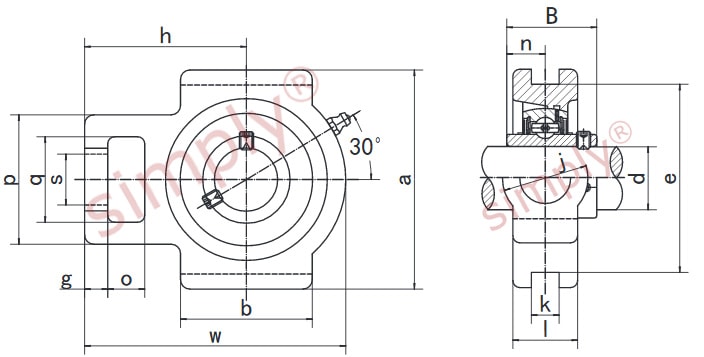

Technical
Technical
| d | 1-9/16 inch |
|---|---|
| o | 7/8 inch |
| g | 3/4 inch |
| p | 3-17/64 inch |
| q | 1-31/32 inch |
| s | 1-1/4 inch |
| b | 3-1/2 inch |
| k | 0.709 inch |
| e | 4-13/32 inch |
| a | 4-7/8 inch |
| w | 6-3/8 inch |
| j | 1-31/32 inch |
| l | 1-11/32 inch |
| h | 3-15/16 inch |
| B | 2.0472 inch |
| n | 0.748 inch |
| Bearing no | UC308-25 |
| Housing no | T308 |
| Weight | 2.9 kg |
