SKU: UCT212CC-SNR

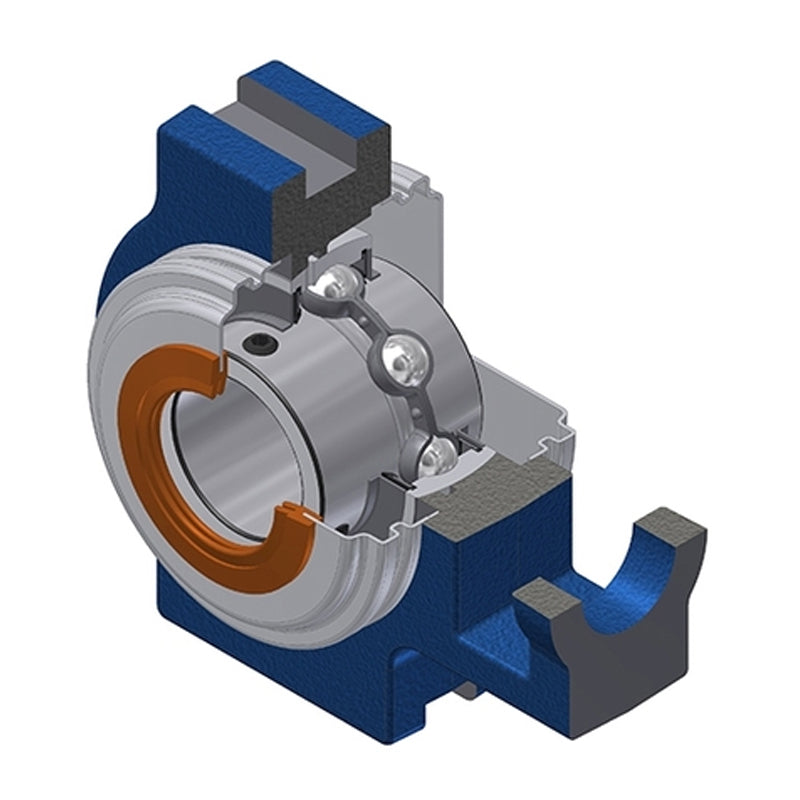

SNR UCT212CC Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCT212CC Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
$162.82
ex VAT
Regular price
Sale price
$162.82
ex VAT
In stock
Price Break
3+
$77.21
4+
$72.87
9+
$72.00
19+
$71.14
49+
$70.27
99+
$69.40
499+
$65.06
999+
$64.20
1999+
$63.33
2999+
$62.46
4999+
$60.73
Quantity
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCT
Technical
Technical

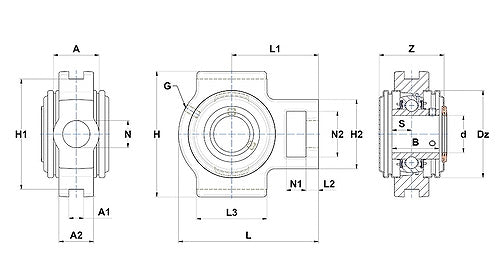

| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 64mm |
| A1 | 22mm |
| A2 | 42mm |
| B | 65.1mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 194mm |
| L1 | 119mm |
| L2 | 19mm |
| L3 | 102mm |
| N | 35mm |
| N1 | 32mm |
| N2 | 64mm |
| S | 25.4mm |
| Dz | 120mm |
| Z | 90mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 4.96 kg |
