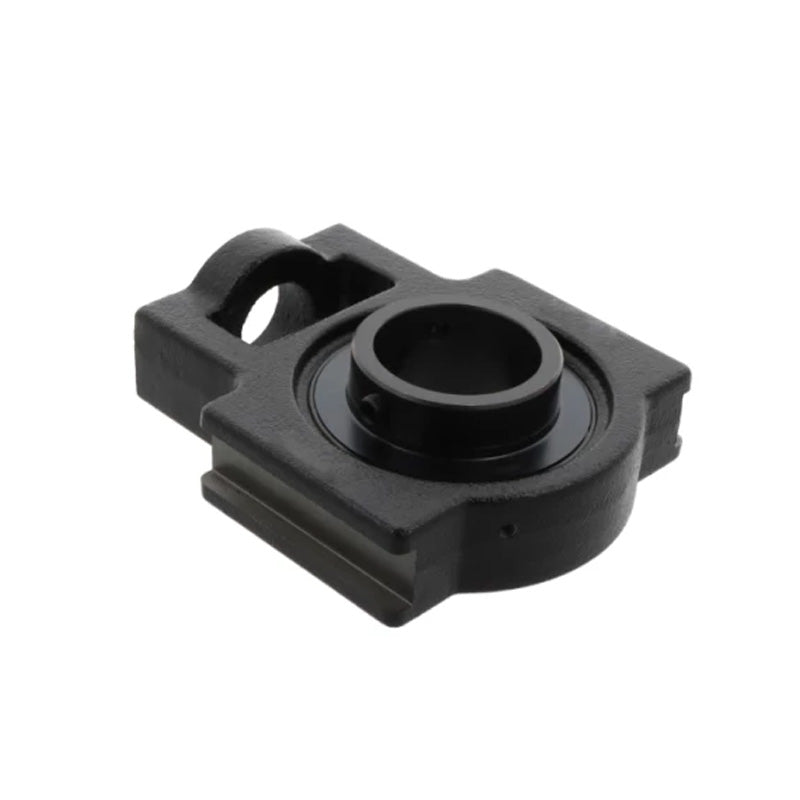

UCT210-32 Metric Series Cast Iron Take Up Unit Housing with 2 inch Bore Bearing Unit
UCT210-32 Metric Series Cast Iron Take Up Unit Housing with 2 inch Bore Bearing Unit
Out of stock
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCT
Technical
Technical
| d | 2 inch |
|---|---|
| o | 19mm |
| g | 16mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 86mm |
| k | 16mm |
| e | 102mm |
| a | 117mm |
| W | 149mm |
| j | 49mm |
| L | 37mm |
| h | 90mm |
| Bi | 51.6mm |
| n | 19mm |
| Weight | 2.5 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
