SKU: UCT.208.TS.CHAL

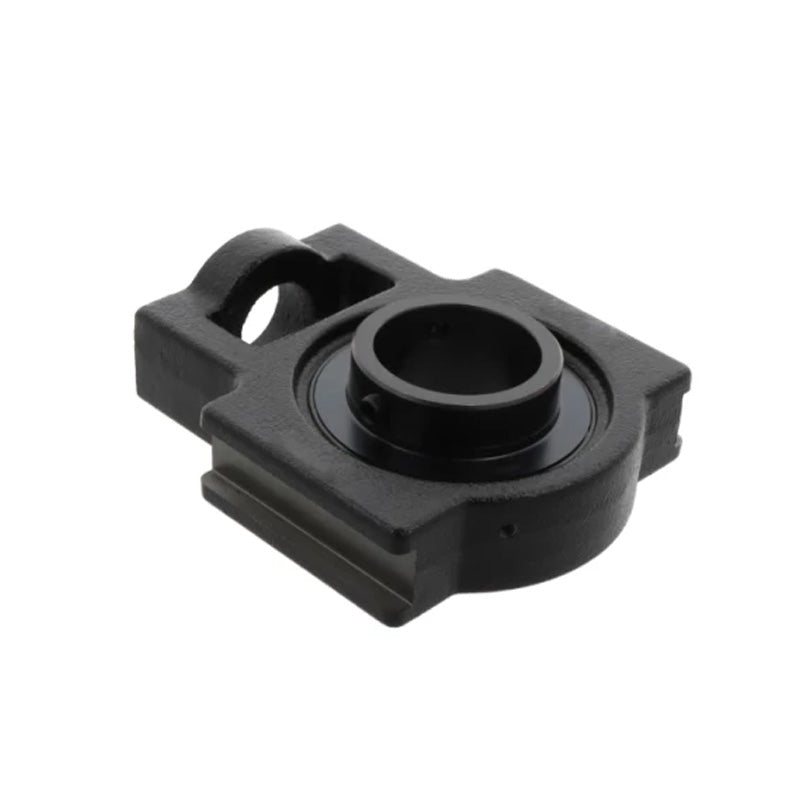

Challenge / FK UCT208 Metric Cast Iron Take Up Unit Housing with 40mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCT208 Metric Cast Iron Take Up Unit Housing with 40mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price $102.98 ex VAT
Regular price Sale price $102.98 ex VAT
Sale Sold out

Equivalent to: UCT.208

In stock

Price Break
3+ $48.83
5+ $46.09
9+ $45.54
19+ $44.99
49+ $44.44
74+ $43.89
99+ $41.15
199+ $40.60
249+ $40.05
499+ $39.50
999+ $38.41
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

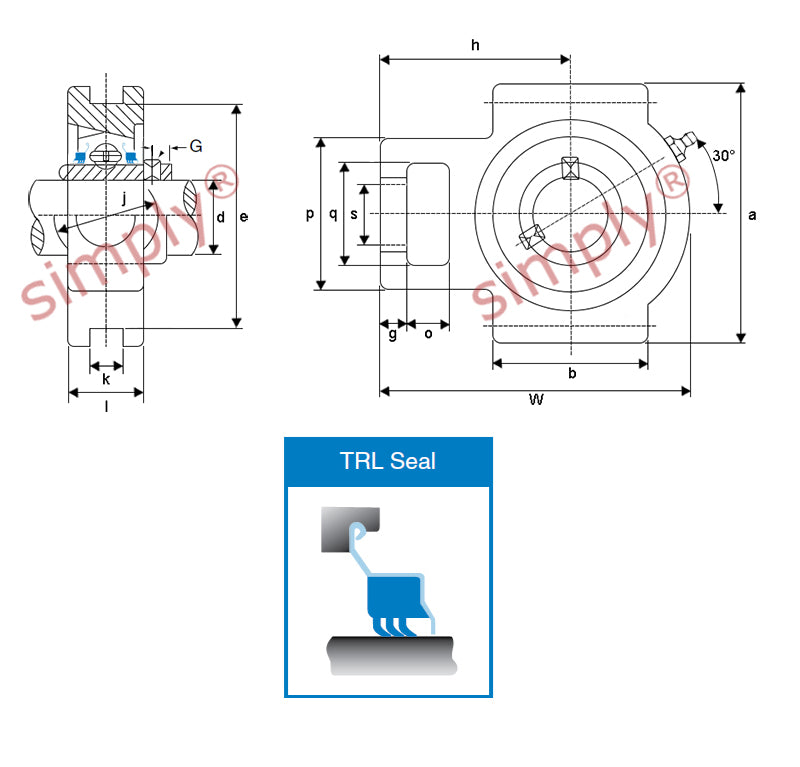

Technical
Shaft Diameter d 40mm
Nut Slot Width o 19mm
Distance g 16mm
Dimention p 83mm
Dimention q 49mm
Hole s 29mm
Dimention b 83mm
Slot Width k 16mm
Distance Between Slots e 102mm
Overall Casting Depth a 114mm
Width w 144mm
Diameter j 49mm
Casting Width at Slots l 33mm
Dimension h 89mm
Grub Screws x 2 M8x1.0
Load Rating (Dynamic) 2560kg
Load Rating (Static) 1810kg
Max Speed 2200 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
Insert No UC208
Housing No T208
