SKU: UCPX.11-32

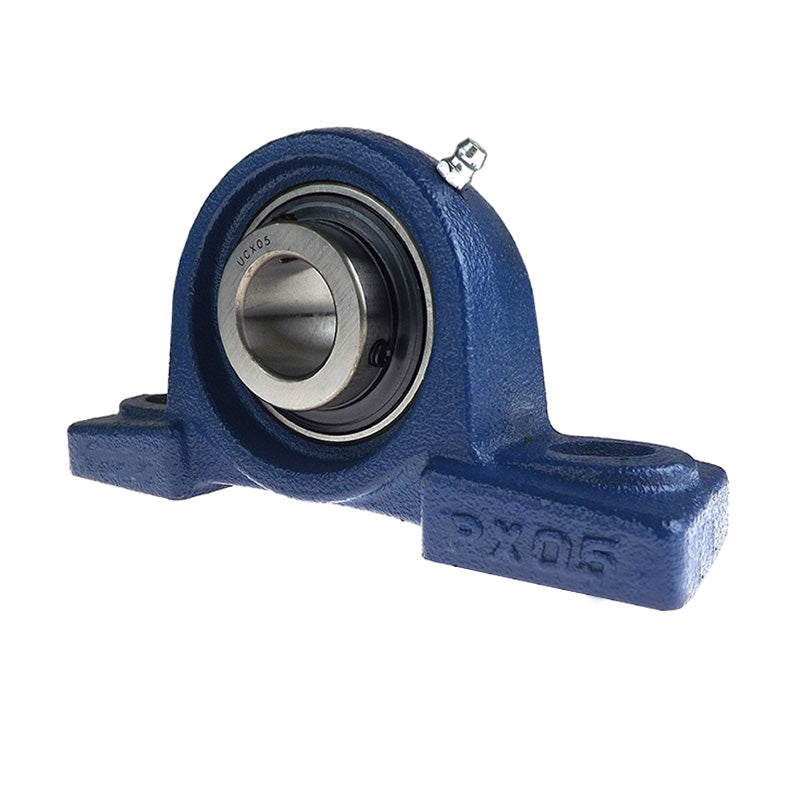

UCPX11-32 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 2 inch Bore Insert
UCPX11-32 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 2 inch Bore Insert
Out of stock
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCPX
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 2 inch |
|---|---|
| h | 69.8mm |
| a | 260mm |
| e | 184mm |
| b | 79mm |
| s2 | 36mm |
| s1 | 25mm |
| g | 30mm |
| w | 139mm |
| B1 | 65.1mm |
| n | 25.4mm |
| Bolt Size | M20 |
| Weight | 6.3 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
