SKU: UCPLE209-SNR

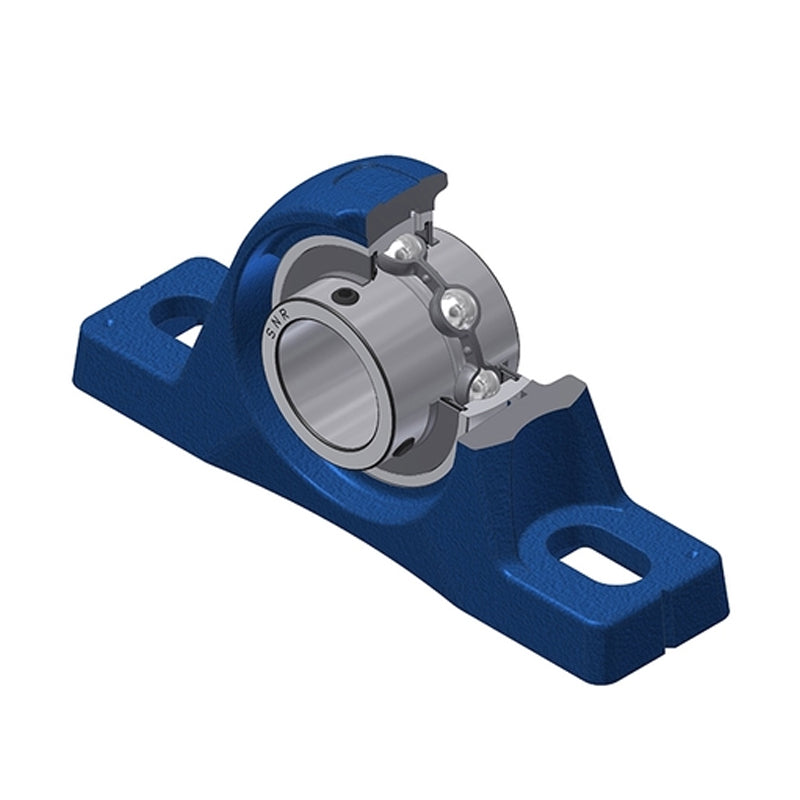

SNR UCPLE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert - Allow 2-3 Days
SNR UCPLE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert - Allow 2-3 Days
Regular price
$68.75
ex VAT
Regular price
Sale price
$68.75
ex VAT
In stock
Price Break
3+
$32.60
4+
$30.77
9+
$30.40
19+
$30.04
49+
$29.67
99+
$29.30
499+
$27.47
999+
$27.10
1999+
$26.74
2999+
$26.37
4999+
$25.64
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCPLE
- Bolt Hole Centres:
- 151.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 54mm |
| A1 | 35mm |
| B | 49.2mm |
| H | 52.4mm |
| H1 | 18.4mm |
| H2 | 106.4mm |
| J | 151.5mm |
| L | 197.5mm |
| N | 14mm |
| N1 | 24mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.38 kg |
