SKU: UCPG210-SNR

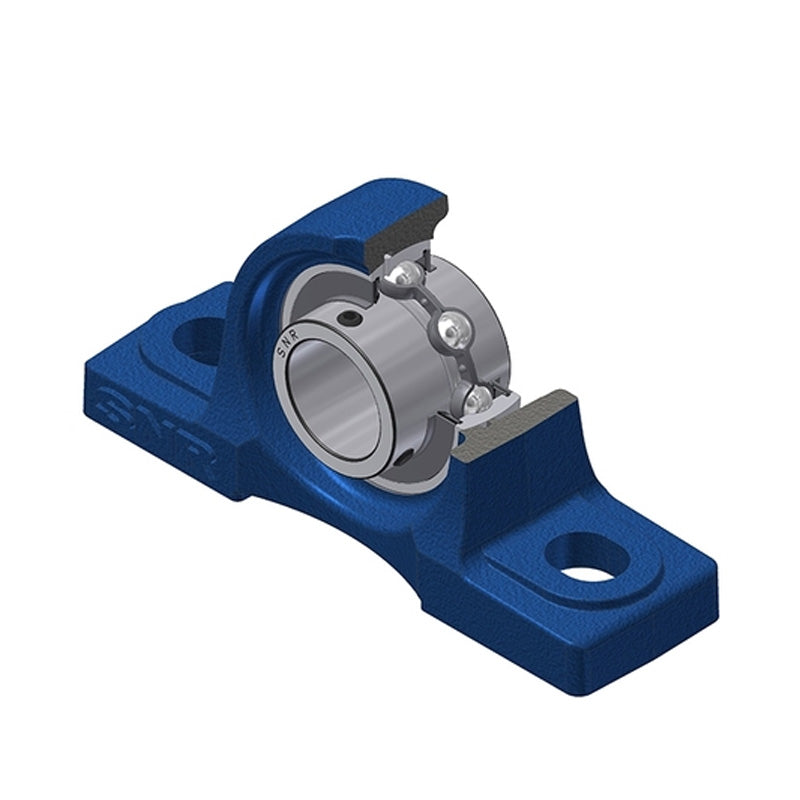

SNR UCPG210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days

SNR UCPG210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price $86.84 ex VAT
Regular price Sale price $86.84 ex VAT
Sale Sold out

In stock

Price Break
3+ $41.18
4+ $38.86
9+ $38.40
19+ $37.94
49+ $37.48
99+ $37.01
499+ $34.70
999+ $34.24
1999+ $33.78
2999+ $33.31
4999+ $32.39
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

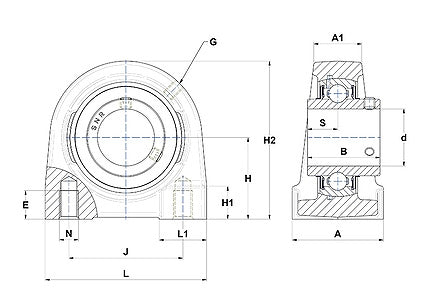

--- Dimensions
Shaft diameter 50mm
A 60mm
A1 35mm
B 51.6mm
E 25mm
H 57.2mm
H1 21mm
H2 114mm
J 95mm
L 135mm
L1 40mm
N M16
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.8 kg
