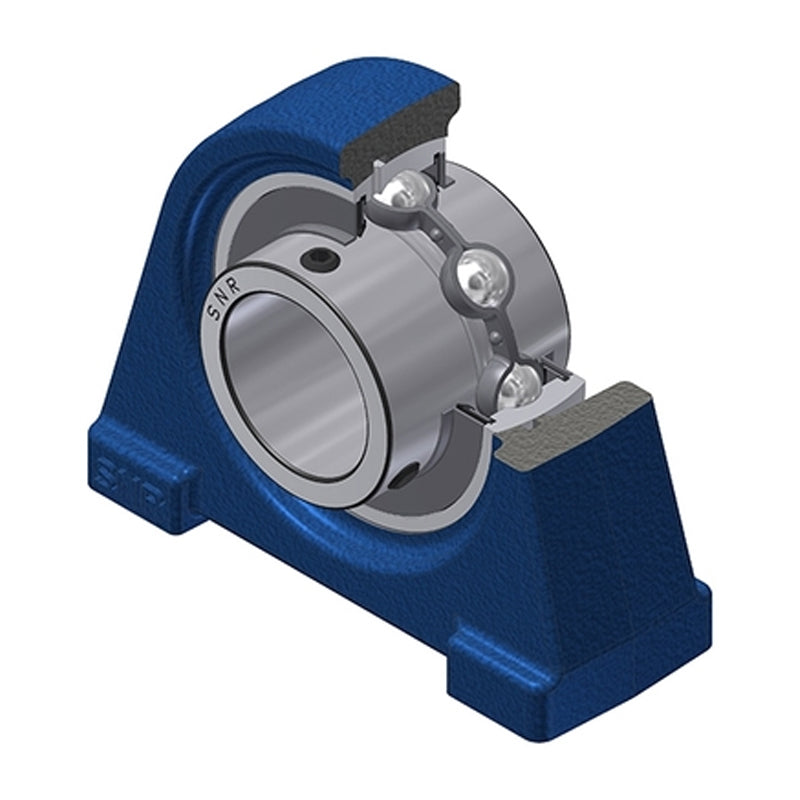

SNR UCPAE204-12 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 3/4 inch Bore Insert
SNR UCPAE204-12 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 3/4 inch Bore Insert
Regular price
$52.27
ex VAT
Regular price
Sale price
$52.27
ex VAT
In stock
Price Break
3+
$24.78
4+
$23.39
9+
$23.11
19+
$22.83
49+
$22.56
99+
$22.28
499+
$20.88
999+
$20.61
1999+
$20.33
2999+
$20.05
4999+
$19.49
Quantity
Couldn't load pickup availability
Description
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- UCPAE
- Bolt Hole Centres:
- 50.8mm
Technical
Technical

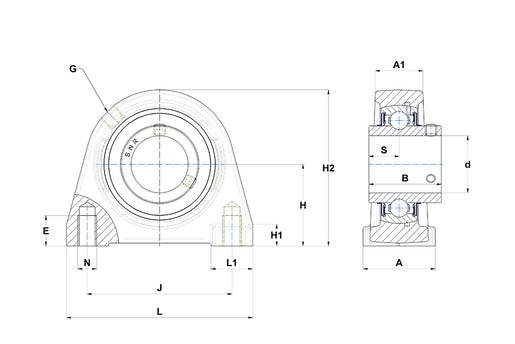

| --- | Dimensions |
|---|---|
| Shaft diameter | 3/4 inch |
| A | 32mm |
| A1 | 19mm |
| B | 31mm |
| E | 10mm |
| H | 33.3mm |
| H1 | 9mm |
| H2 | 64mm |
| J | 50.8mm |
| L | 65mm |
| L1 | 18mm |
| N | M8 |
| S | 12.7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.47 kg |
