SKU: UCPA204-SNR

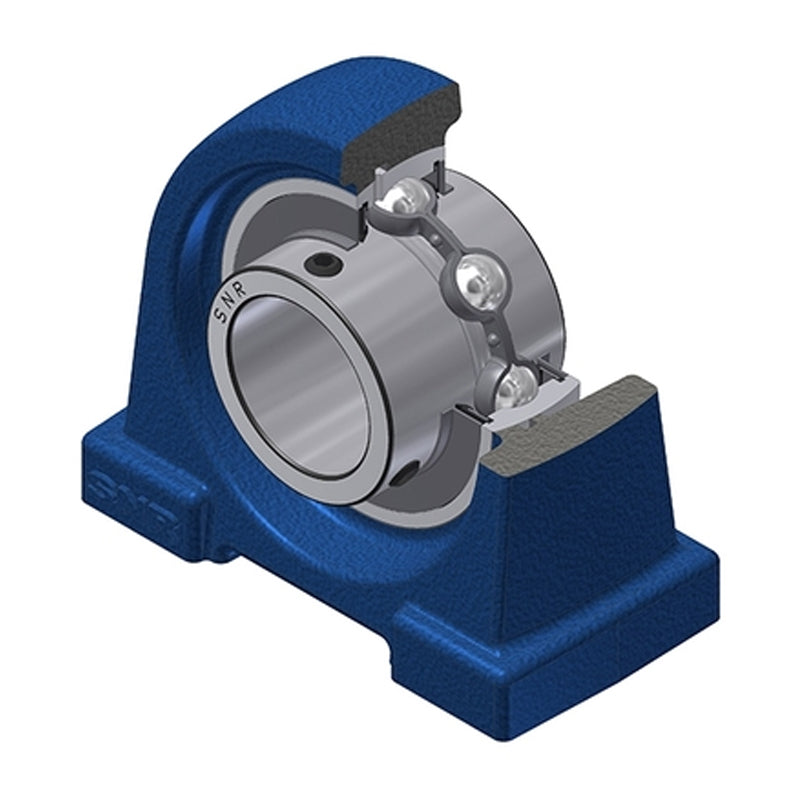

SNR UCPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert - Allow 2-3 Days
SNR UCPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert - Allow 2-3 Days
Regular price
$52.27
ex VAT
Regular price
Sale price
$52.27
ex VAT
In stock
Price Break
3+
$24.78
4+
$23.39
9+
$23.11
19+
$22.83
49+
$22.56
99+
$22.28
499+
$20.88
999+
$20.61
1999+
$20.33
2999+
$20.05
4999+
$19.49
Quantity
Couldn't load pickup availability
Description
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCPA
- Bolt Hole Centres:
- 52mm
Technical
Technical

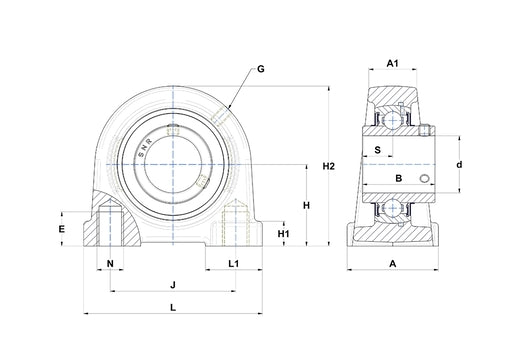

| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| A | 40mm |
| A1 | 22mm |
| B | 31mm |
| E | 13mm |
| H | 30.2mm |
| H1 | 11mm |
| H2 | 62mm |
| J | 52mm |
| L | 76mm |
| L1 | 22mm |
| N | M10 |
| S | 12.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.57 kg |
