SKU: UCP218-56-SNR

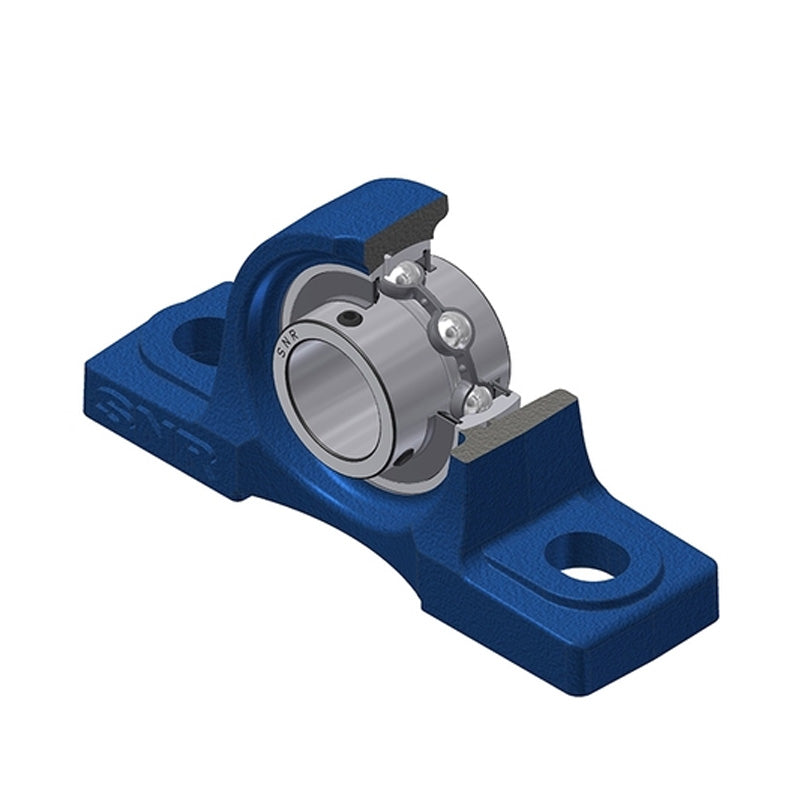

SNR UCP218-56 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-1/2 inch Bore Insert - Allow 2-3 Days
SNR UCP218-56 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-1/2 inch Bore Insert - Allow 2-3 Days
Regular price
$335.19
ex VAT
Regular price
Sale price
$335.19
ex VAT
In stock
Price Break
3+
$158.95
4+
$150.02
9+
$148.23
19+
$146.45
49+
$144.66
99+
$142.87
499+
$133.94
999+
$132.16
1999+
$130.37
2999+
$128.59
4999+
$125.01
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- UCP
- Bolt Hole Centres:
- 262mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 3-1/2 inch |
| A | 88mm |
| A1 | 55mm |
| B | 96mm |
| H | 101.6mm |
| H1 | 34mm |
| H2 | 200mm |
| J | 262mm |
| L | 327mm |
| L1 | 100mm |
| N | 27mm |
| N1 | 33mm |
| S | 39.7mm |
| Grease fitting G | M10x1 |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 13.56 kg |
| Recommended tightening torque for set screw | 33.9 Nm |
