SKU: UCP215-47-SNR

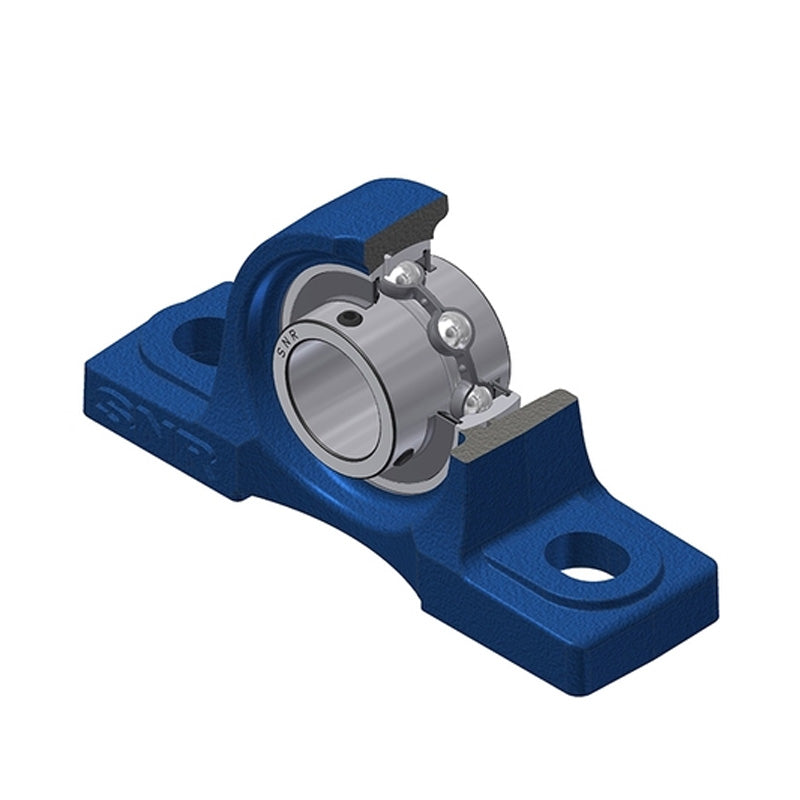

SNR UCP215-47 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
SNR UCP215-47 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
Regular price
$192.98
ex VAT
Regular price
Sale price
$192.98
ex VAT
In stock
Price Break
3+
$91.51
4+
$86.37
9+
$85.34
19+
$84.31
49+
$83.28
99+
$82.25
499+
$77.11
999+
$76.08
1999+
$75.06
2999+
$74.03
4999+
$71.97
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- UCP
- Bolt Hole Centres:
- 217mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-15/16 inch |
| A | 74mm |
| A1 | 48mm |
| B | 77.8mm |
| H | 82.6mm |
| H1 | 28mm |
| H2 | 163mm |
| J | 217mm |
| L | 275mm |
| L1 | 85mm |
| N | 25mm |
| N1 | 31mm |
| S | 33.3mm |
| Grease fitting G | M10x1 |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 7.4 kg |
| Recommended tightening torque for set screw | 27.1 Nm |
