SKU: UCP205-14-SNR

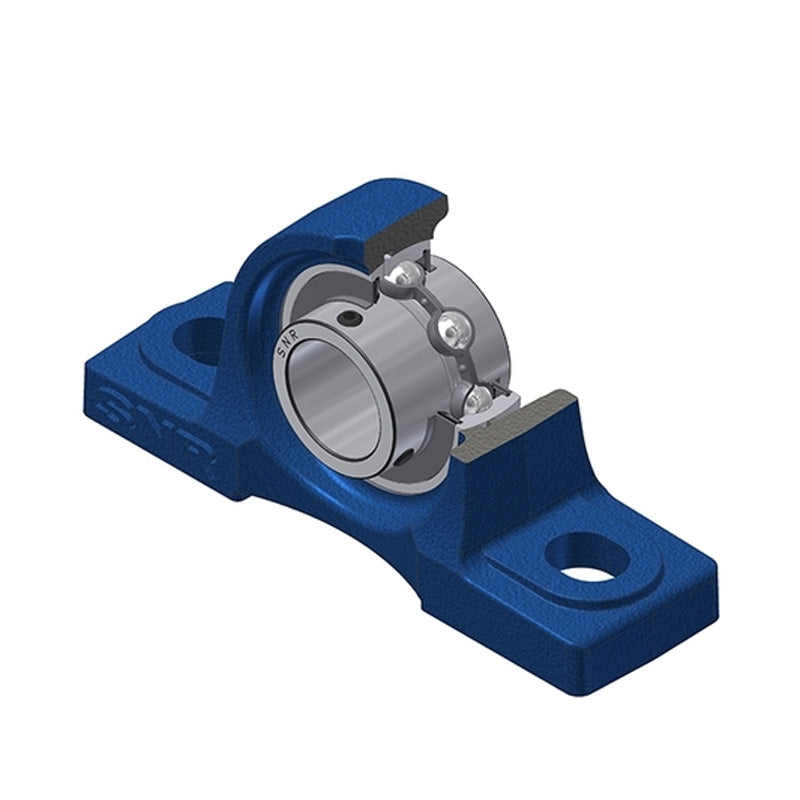

SNR UCP205-14 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 7/8 inch Bore Insert - Allow 2-3 Days
SNR UCP205-14 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 7/8 inch Bore Insert - Allow 2-3 Days
Regular price
$42.21
ex VAT
Regular price
Sale price
$42.21
ex VAT
In stock
Price Break
3+
$20.02
4+
$18.89
9+
$18.67
19+
$18.44
49+
$18.22
99+
$17.99
499+
$16.87
999+
$16.64
1999+
$16.42
2999+
$16.19
4999+
$15.74
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- UCP
- Bolt Hole Centres:
- 105mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 7/8 inch |
| A | 38mm |
| A1 | 26mm |
| B | 34mm |
| H | 36.5mm |
| H1 | 16mm |
| H2 | 70mm |
| J | 105mm |
| L | 140mm |
| L1 | 42mm |
| N | 13mm |
| N1 | 19mm |
| S | 14.3mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.81 kg |
| Recommended tightening torque for set screw | 3.7 Nm |
