SKU: UCP204-SNR

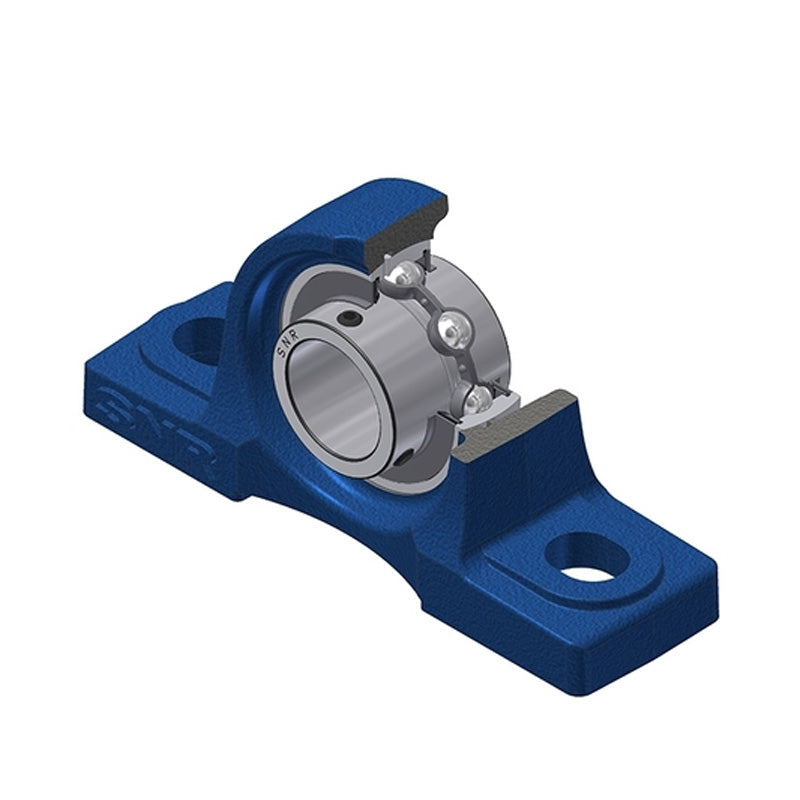

SNR UCP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert
SNR UCP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert
Regular price
$41.61
ex VAT
Regular price
Sale price
$41.61
ex VAT
In stock
Price Break
3+
$19.74
4+
$18.63
9+
$18.41
19+
$18.18
49+
$17.96
99+
$17.74
499+
$16.63
999+
$16.41
1999+
$16.19
2999+
$15.97
4999+
$15.52
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCP
- Bolt Hole Centres:
- 95mm
Technical
Technical

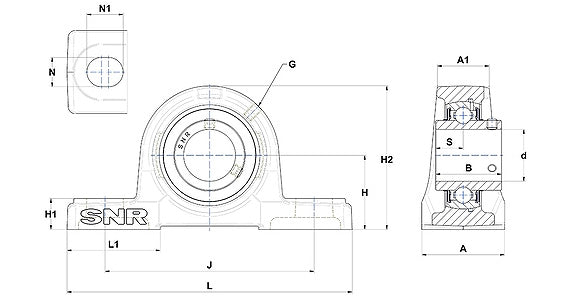

| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 38mm |
| A1 | 22mm |
| B | 31mm |
| H | 33.3mm |
| H1 | 15mm |
| H2 | 65mm |
| J | 95mm |
| L | 127mm |
| L1 | 42mm |
| N | 13mm |
| N1 | 19mm |
| S | 12.7mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.67 kg |
| Recommended tightening torque for set screw | 5.5 Nm |
