SKU: UCHB212D1-NTN

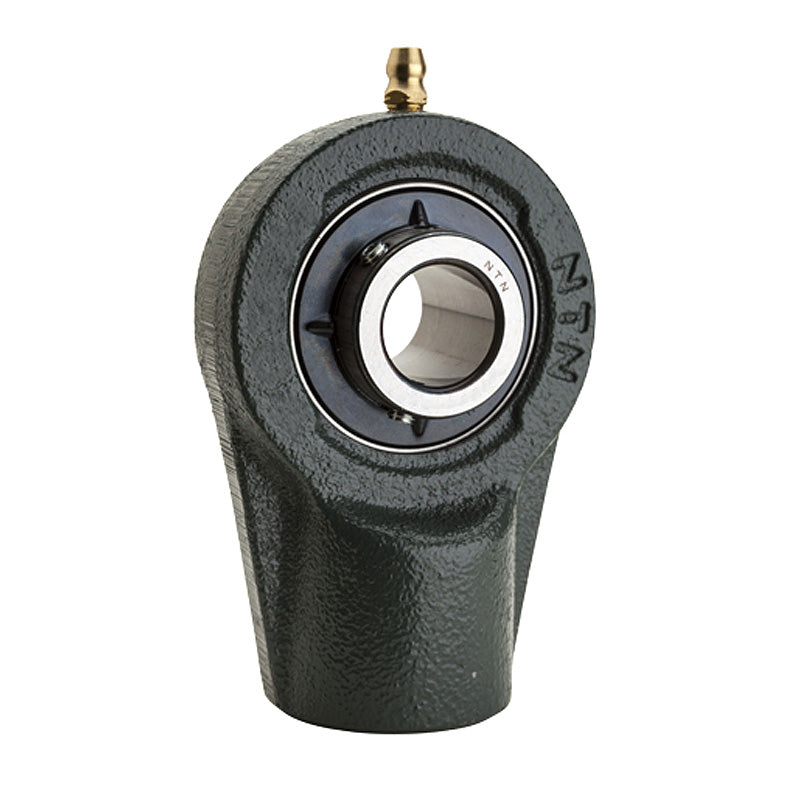

NTN UCHB212D1 Metric Cast Iron Hanger Bearing Unit with 60mm Bore Insert - Allow 2-3 Days
NTN UCHB212D1 Metric Cast Iron Hanger Bearing Unit with 60mm Bore Insert - Allow 2-3 Days
Regular price
$157.26
ex VAT
Regular price
Sale price
$157.26
ex VAT
In stock
Price Break
3+
$74.57
4+
$70.38
9+
$69.55
19+
$68.71
49+
$67.87
99+
$67.03
499+
$62.84
999+
$62.00
1999+
$61.17
2999+
$60.33
4999+
$58.65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCHB

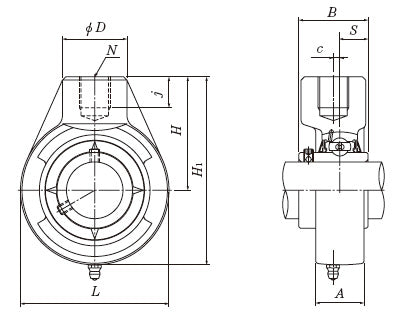

Technical
Technical
| Shaft diameter | 60mm |
|---|---|
| L | 142mm |
| H<sub>1</sub> | 173mm |
| c | 9mm |
| A | 42mm |
| H | 102mm |
| N | RP1-1/4 |
| D | 60mm |
| j | 28mm |
| B | 65.1mm |
| S | 25.4mm |
| Mass | 3.7 kg |
