SKU: UCHA214
UCHA214 Metric Cast Iron Hanger Bearing Unit with 70mm Bore Insert
UCHA214 Metric Cast Iron Hanger Bearing Unit with 70mm Bore Insert
Regular price
$351.78
ex VAT
Regular price
Sale price
$351.78
ex VAT
In stock
Price Break
3+
$166.81
4+
$157.44
9+
$155.56
19+
$153.69
49+
$151.81
99+
$149.94
499+
$140.57
999+
$138.69
1999+
$136.82
2999+
$134.95
4999+
$131.20
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCHA
Technical
Technical

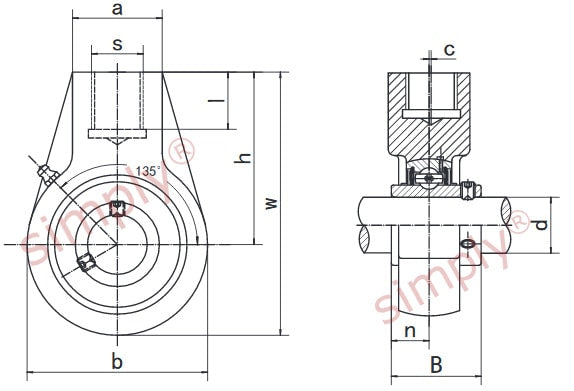

| d | 70mm |
|---|---|
| h | 117mm |
| w | 200mm |
| b | 166mm |
| c | 9.5mm |
| a | 70mm |
| s | G1-1/2 |
| l | 32mm |
| B | 74.6mm |
| n | 30.2mm |
| Bearing no | UC214 |
| Housing no | HA214 |
| Weight | 5.457 kg |
