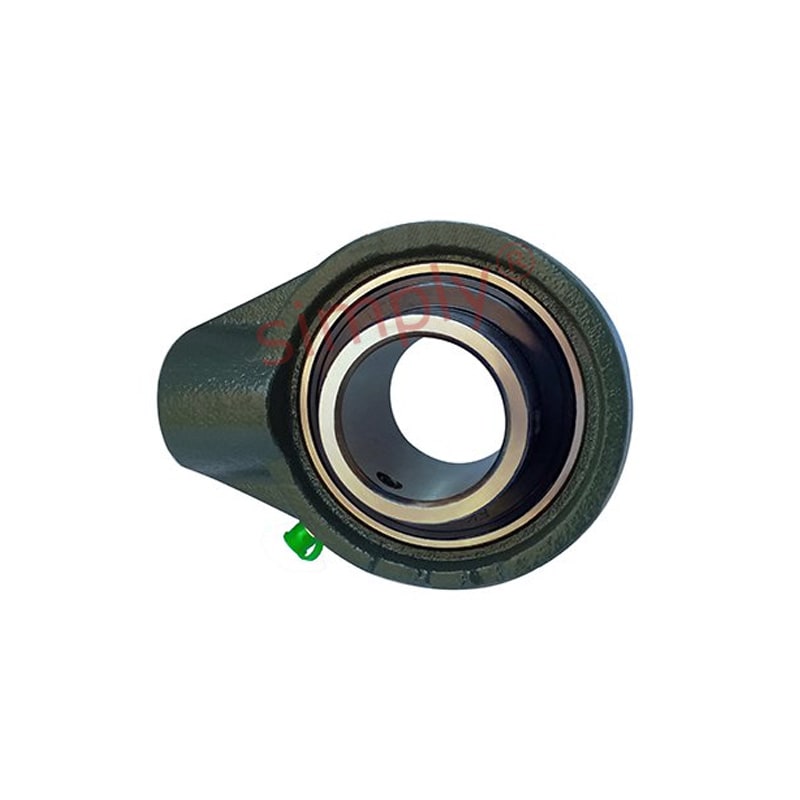

UCHA211-32 Imperial Cast Iron Hanger Bearing Unit with 2 inch Bore Insert
UCHA211-32 Imperial Cast Iron Hanger Bearing Unit with 2 inch Bore Insert
Regular price
$94.97
ex VAT
Regular price
Sale price
$94.97
ex VAT
In stock
Price Break
3+
$45.03
4+
$42.50
9+
$41.99
19+
$41.49
49+
$40.98
99+
$40.48
499+
$37.95
999+
$37.44
1999+
$36.94
2999+
$36.43
4999+
$35.42
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCHA
Technical
Technical
| d | 2 inch |
|---|---|
| h | 3-27/64 inch |
| w | 5-29/32 inch |
| b | 4-61/64 inch |
| c | 9/32 inch |
| a | 2-23/64 inch |
| s | G1-1/4 |
| l | 63/64 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bearing no | UC211-32 |
| Housing no | HA211 |
| Weight | 2.597 kg |
