SKU: UCFX14D1-NTN

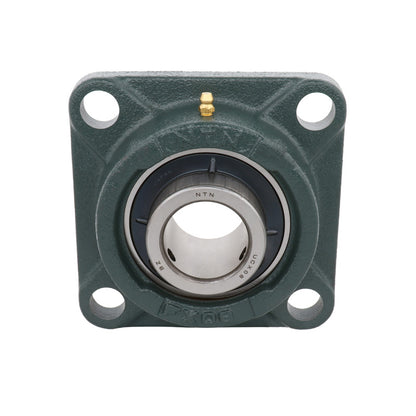

NTN UCFX14D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
NTN UCFX14D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
Regular price
$220.51
ex VAT
Regular price
Sale price
$220.51
ex VAT
In stock
Price Break
3+
$104.57
4+
$98.69
9+
$97.52
19+
$96.34
49+
$95.17
99+
$93.99
499+
$88.12
999+
$86.94
1999+
$85.77
2999+
$84.59
4999+
$82.24
Quantity
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCFX
- Bolt Hole Centres:
- 152mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| L | 197mm |
| J | 152mm |
| A<sub>2</sub> | 37mm |
| A<sub>1</sub> | 24mm |
| A | 60mm |
| N | 23mm |
| A<sub>0</sub> | 81.5mm |
| B | 77.8mm |
| S | 33.3mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 73.5 kN |
| Static load C<sub>0r</sub> | 49.5 kN |
| Fatigue load limit C<sub>u</sub> | 3.8 kN |
| --- | Unit information |
| Mass | 7.1 kg |
