SKU: UCFX10-200D1-NTN

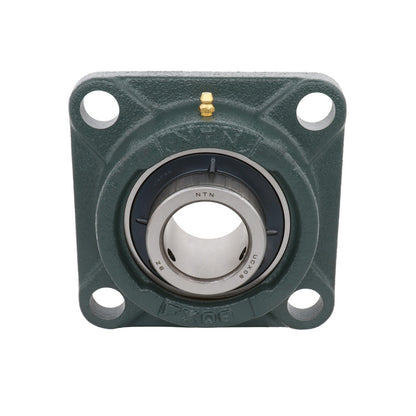

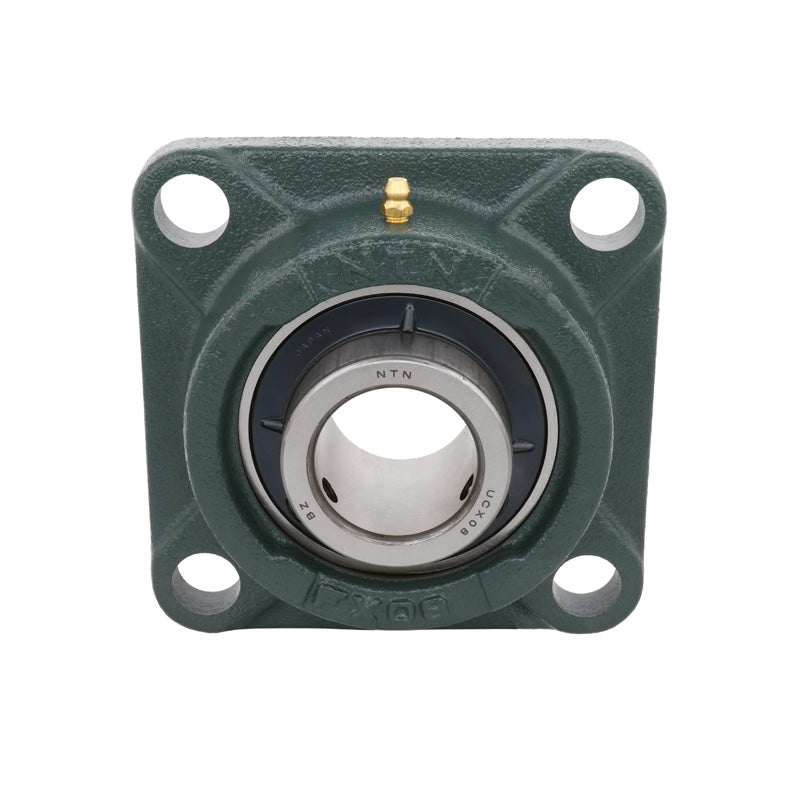

NTN UCFX10-200D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert
NTN UCFX10-200D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert
Regular price
$108.07
ex VAT
Regular price
Sale price
$108.07
ex VAT
In stock
Price Break
3+
$51.25
4+
$48.37
9+
$47.79
19+
$47.22
49+
$46.64
99+
$46.06
499+
$43.19
999+
$42.61
1999+
$42.03
2999+
$41.46
4999+
$40.31
Quantity
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCFX
- Bolt Hole Centres:
- 5-1/8 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2 inch |
| L | 6-3/8 inch |
| J | 5-1/8 inch |
| A<sub>2</sub> | 1-1/32 inch |
| A<sub>1</sub> | 25/32 inch |
| A | 1-23/32 inch |
| N | 3/4 inch |
| A<sub>0</sub> | 2-11/32 inch |
| B | 2.189 inch |
| S | 0.874 inch |
| Fixing bolt | 5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 8.4 lbs |
