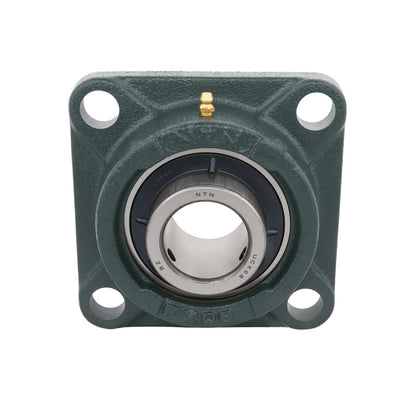

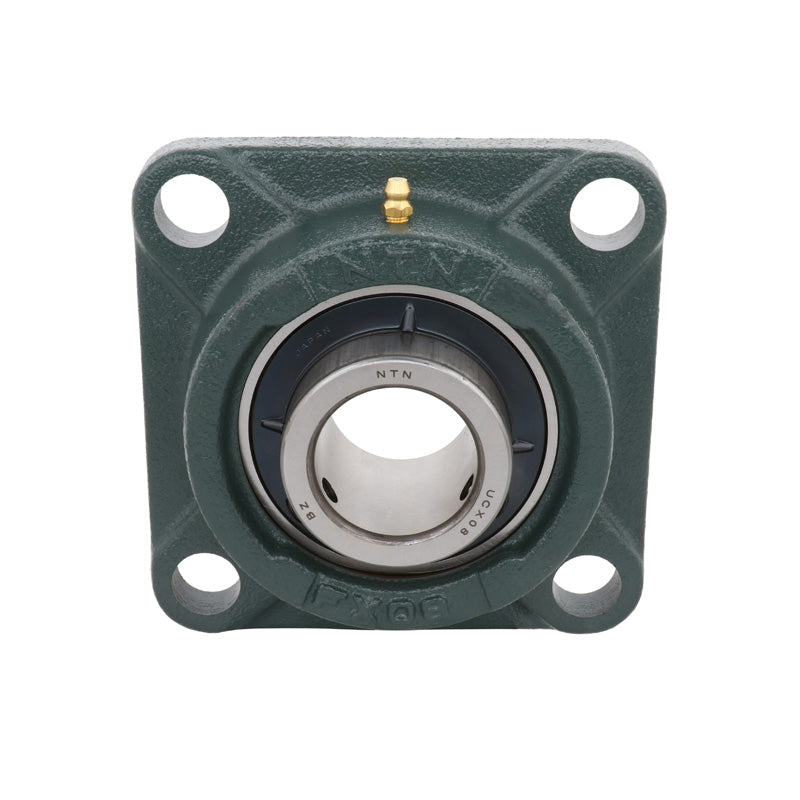

NTN UCFX07D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
NTN UCFX07D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
Regular price
$66.89
ex VAT
Regular price
Sale price
$66.89
ex VAT
In stock
Price Break
3+
$31.72
4+
$29.94
9+
$29.58
19+
$29.22
49+
$28.87
99+
$28.51
499+
$26.73
999+
$26.37
1999+
$26.02
2999+
$25.66
4999+
$24.95
Quantity
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFX
- Bolt Hole Centres:
- 102mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| L | 130mm |
| J | 102mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 14mm |
| A | 38mm |
| N | 16mm |
| A<sub>0</sub> | 51.2mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 2.1 kg |
