SKU: UCFL217-SNR

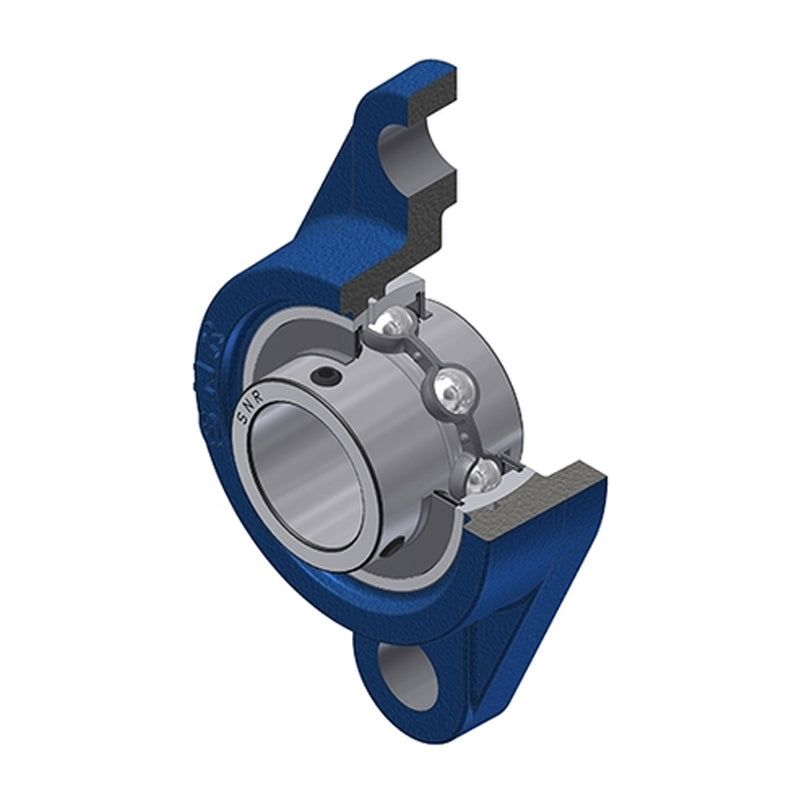

SNR UCFL217 Metric Two Bolt Oval Cast Iron Flange Housing with 85mm Bore Insert - Allow 2-3 Days
SNR UCFL217 Metric Two Bolt Oval Cast Iron Flange Housing with 85mm Bore Insert - Allow 2-3 Days
Regular price
$280.42
ex VAT
Regular price
Sale price
$280.42
ex VAT
In stock
Price Break
3+
$132.97
4+
$125.50
9+
$124.01
19+
$122.52
49+
$121.02
99+
$119.53
499+
$112.06
999+
$110.56
1999+
$109.07
2999+
$107.57
4999+
$104.59
Quantity
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 85mm
- Style:
- UCFL
- Bolt Hole Centres:
- 248mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 85mm |
| A | 63mm |
| A1 | 22mm |
| A2 | 87.6mm |
| B | 85.7mm |
| e | 36mm |
| H | 305mm |
| J | 248mm |
| L | 190mm |
| N | 25mm |
| S | 34.1mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 83.2 kN |
| Static load C0 | 63.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 8.46 kg |
