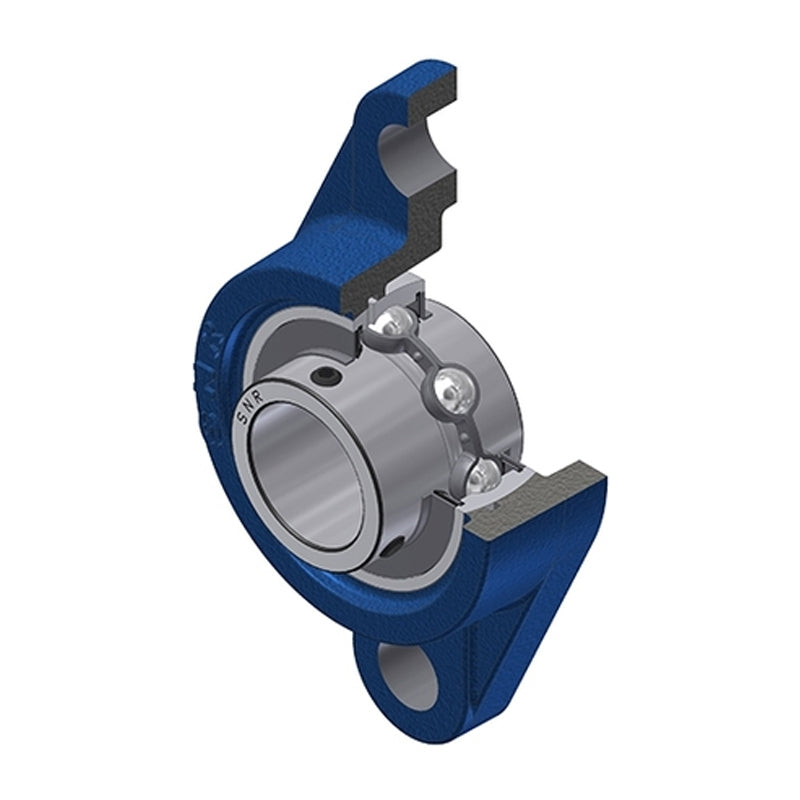

SNR UCFL211-35 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/16 inch Bore Insert - Allow 2-3 Days
SNR UCFL211-35 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/16 inch Bore Insert - Allow 2-3 Days
Regular price
$99.51
ex VAT
Regular price
Sale price
$99.51
ex VAT
In stock
Price Break
3+
$47.19
4+
$44.54
9+
$44.01
19+
$43.48
49+
$42.95
99+
$42.42
499+
$39.76
999+
$39.23
1999+
$38.70
2999+
$38.17
4999+
$37.11
Quantity
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-3/16 inch |
| A | 43mm |
| A1 | 18mm |
| A2 | 58.4mm |
| B | 55.6mm |
| e | 25mm |
| H | 224mm |
| J | 184mm |
| L | 130mm |
| N | 19mm |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 2.95 kg |
