• SNR UCFC210CO Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCFC210CO-SNR

SNR UCFC210CO Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCFC210CO Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$102.81 ex VAT
$102.81 ex VAT
Sale Sold out

In stock

Price Break
3+ $48.76
4+ $46.02
9+ $45.47
19+ $44.92
49+ $44.38
99+ $43.83
499+ $41.09
999+ $40.54
1999+ $39.99
2999+ $39.44
4999+ $38.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

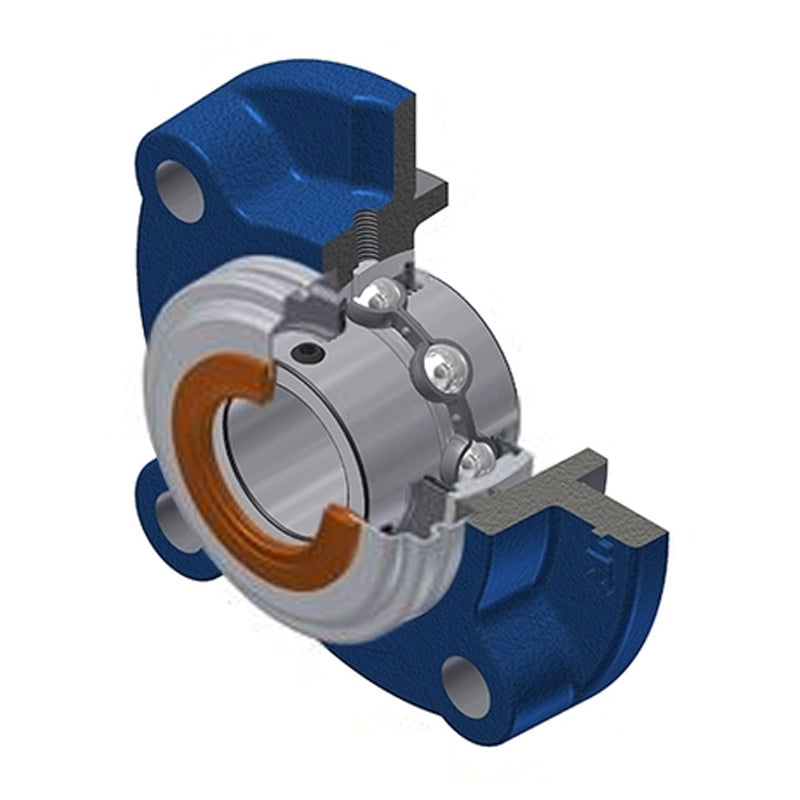

UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCFC
Pitch Circle Diameter:
138mm
Technical

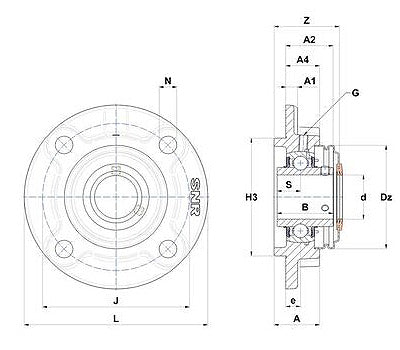

--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 14mm
A2 42.6mm
A4 28mm
B 51.6mm
e 10mm
H3 110mm
J 138mm
L 165mm
N 16mm
S 19mm
Dz 100mm
Z 59.8mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.897 kg
