SNR UCFC209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
SNR UCFC209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
Regular price
$83.22
ex VAT
Regular price
Sale price
$83.22
ex VAT
In stock
Price Break
3+
$39.46
4+
$37.25
9+
$36.80
19+
$36.36
49+
$35.91
99+
$35.47
499+
$33.25
999+
$32.81
1999+
$32.37
2999+
$31.92
4999+
$31.04
Quantity
Couldn't load pickup availability
Description
Description
|

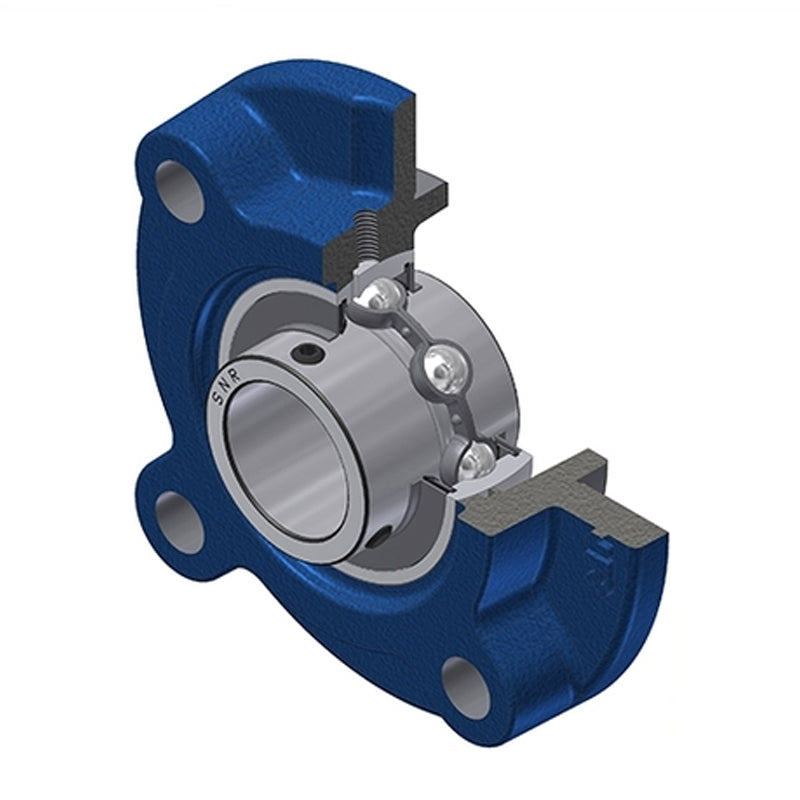

UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 132mm
Technical
Technical

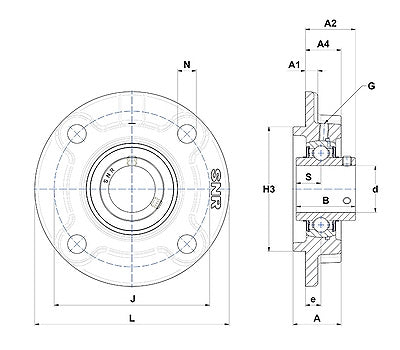

| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 38mm |
| A1 | 10mm |
| A2 | 40.2mm |
| A4 | 26mm |
| B | 49.2mm |
| e | 10mm |
| H3 | 105mm |
| J | 132mm |
| L | 160mm |
| N | 16mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.43 kg |
