SKU: UCFC.211-35

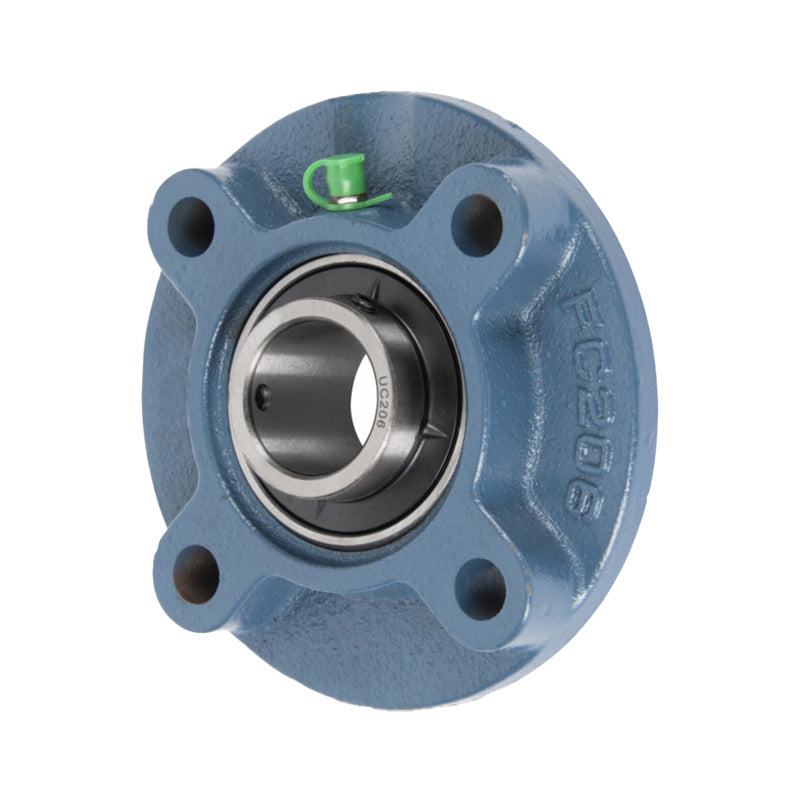

UCFC211-35 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-3/16 inch Insert
UCFC211-35 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-3/16 inch Insert
Out of stock
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 150.02mm = 150.02 (5-29/32) inch

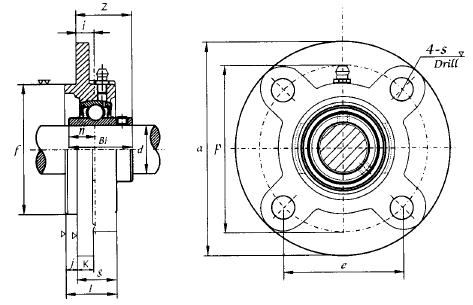

Technical
Technical
| d | 2-3/16 inch |
|---|---|
| a | 7-9/32 inch |
| P | 5-29/32 inch |
| e | 4-11/64 inch |
| i | 33/64 inch |
| L | 1-21/32 inch |
| s | 3/4 inch |
| j | 15/32 inch |
| k | 19/32 inch |
| g | 1-7/32 inch |
| f | 4.9213 inch |
| z | 1-13/16 inch |
| Bi | 2.1890 inch |
| n | 0.8740 inch |
| Bolt Size | 5/8 inch |
| Weight | 4 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
