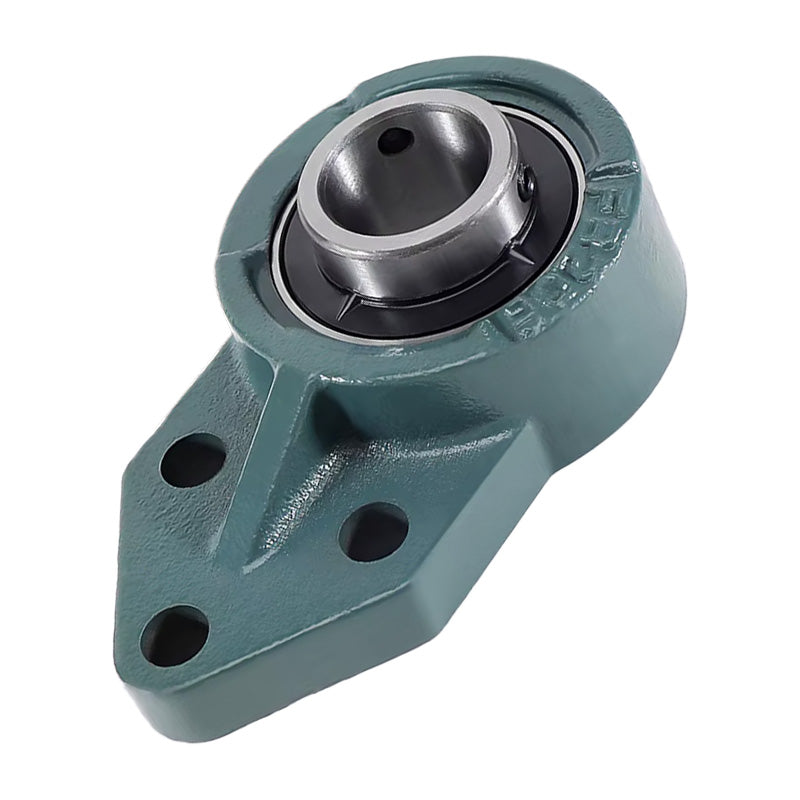

UCFB212 Metric 3 Bolt Cast Iron Bracket Flange Bearing 60mm Bore
UCFB212 Metric 3 Bolt Cast Iron Bracket Flange Bearing 60mm Bore
Out of stock
Share this product
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCFB
- Bolt Hole Centres:
- 66mm
Technical
Technical
| d | 60mm |
|---|---|
| w | 223mm |
| b | 140mm |
| k | 90mm |
| a | 94mm |
| l | 48mm |
| s | 14mm |
| g | 18mm |
| h | 84mm |
| j | 55mm |
| e | 66mm |
| i | 29mm |
| z | 68.7mm |
| B | 65.1mm |
| n | 25.4mm |
| Bolt size | M12 |
| Bearing no | UC212 |
| Housing no | FB212 |
| Weight | 3.869 kg |
